Product details of the biomass rotary dryer
Product Description
Rongda biomass rotary dryer is made by highly skilled and experienced professionals using the optimum quality raw material. Rongda believes that the quality is the soul of an enterprise. This product is famous and is widely accepted in the industry due to its high quality.
Description
● Widely used in drying big size pellet in chemical, mine, environmental protection and other industries, applied for all kinds of pellet, powder materials.
● Rotary dryer (abbreviate to dryer thereinafter) is used for drying wet materials such as: blastfurnace slag, slunch, limestone, pulverized coal, ore and quartz stone in chemical industry, fertilizer industry and construction material industry; metal extractive ore, lixiviate slag and tailings in metallic ore dressing industry; washed coal, calcium fluoride and iron oxide sheet in steel factories; some other materials which won’t cause chemical reaction and produce harmful gas while drying, at the same time, these materials can resist fear and high temperature and won’t be polluted by gas. The output could be customized by customer needs.
● The diameter of the rotary dryer and raw material’s moisture determine the capacity.”
● Three cylinder is suitable for raw material with high specific gravity, like sawdust, sludge, etc. Advantage: small land-occupation, high heat utilization rate, high capacity.
● Single cylinder is suitable for raw material with low specific gravity, like leaves, straw, beet leaves, etc. Compared with three cylinder, bigger land-occupcation, lower heat utilization rate, and lower capacity.
Technical Parameter
Name |
Size |
Inner Dia.(mm) |
Length (mm) |
Power (KW) |
Capacity (t/h) |
Highest input temperature (℃) |
Three cylinder |
Φ1.8*9 |
1800 |
9000 |
2.2*2 |
1-1.5 |
700 |
Φ2.0*9 |
2000 |
9000 |
2.2*2 |
1.5-2 |
||
Φ2.3*9 |
2300 |
9000 |
2.2*2 |
3-4 |
||
Φ2.6*9 |
2600 |
9000 |
3.0*2 |
4-5 |
||
Φ3.0*9 |
3000 |
9000 |
3.2*2 |
5-6 |
||
Single cylinder |
Φ1.5*15 |
1500 |
1500 |
3.0*4 |
1-2 |
|
Φ2.0*15 |
2000 |
1500 |
3.0*4 |
2-3 |
||
Φ2.3*18 |
2300 |
1800 |
4.0*4 |
3-5 |
||
Φ2.5*23 |
2500 |
2300 |
5.5*4 |
5-8 |
||
Φ3.0*23 |
3000 |
2300 |
7.5*4 |
6-9 |

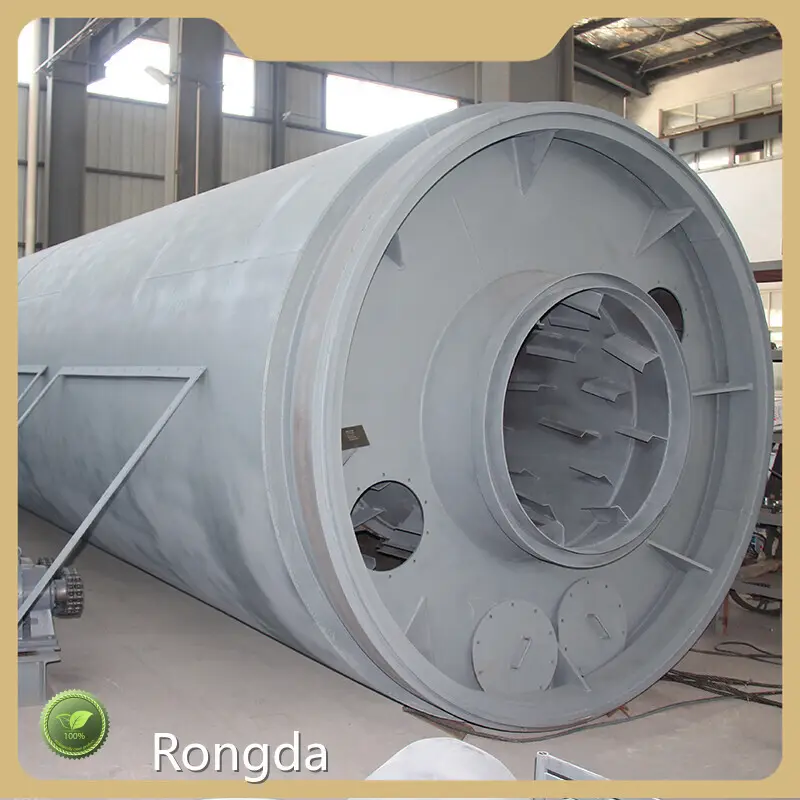

Product Display
Company Advantage
• Rongda constructs a comprehensive sales network by actively developing sales channels. Biomass Machinery,Feed Machinery,Pellet Mill are sold to multiple domestic provinces and cities as well as East Asia, South Asia, and other regions.
• Our company enjoys a superior geographical position, convenient transportation and developed communication. All that creates good external environment for our own development.
• Rongda always gives priority to customers and services. We continuously provide excellent services for numerous customers.
• Since founded in Rongda has been developing for years. Now we become the leader in the industry.
Our products are reliable in quality, various in type and affordable in price. Customers in need are welcomed to contact us. We sincerely hope to reach friendly cooperation, common development and mutual benefit with you!
