Brand Name: RD
Certificate: CE Certificate
Logo: RD
Feature: High efficient, stable
Surface: Polishing and painting
Factory price: Negotiate
Color: Customizable
Supply Ability: 1000-2000 sets per Year
Payment Terms: T/T, L/C, D/A, D/P
Min.Order: One set
Place of Origin: Liyang,Jiangsu, China
Material: Carbon steel or stainless steel
Type: motor driven
Lead time: 30-60 working days
OEM/ODM: Available
Description 01
● Compact structure, small cross-sectional dimensions, can significantly save area.
● Head
Head round the use of plastic bag technology,increasing the coefficient of friction,improving transmission efficiency;nose segment increased discharge height,extend the material discharge time,and there is no exit adjusting plate and buffer chamber , effectively reducing the material back ; lined hood can Replacing super wear-resistant polymer material.
● Barrel
Using undercut edge bite machine technology,good strength, good sealing;additional balance pipe between the two cylinder pressure balance balanced body;big open door type overhaul operation,easy maintenance and replacement bucket;has a vent port,which can effectively ground pressure relief vent.
Description 02
● Base
The new shaft seal structure to prevent dust leakage.Using split bearing structure,ensure equipment reliability;adjustment plate sealing device equipped prescribe overcome the adjustment plate powder leakage,leakage of material phenomena.
● The device is equipped with anti-kickback device,to avoid blocking machine problems caused by power failure.
● deviation can be detected and an alarm device to ensure safety in accordance with user requirements matching normal production speed.
Technical Parameter
Model
|
Head wheel dia.(mm)
|
Throughput |
Bucket quantity (pc/m)
|
Rotating speed(rpm)
|
Maximum lift height (m)
|
|
Pellet (t/h) |
Mash (t/h) |
|||||
TDTG40/18 |
¢400 |
14.5 |
8 |
4 |
80 |
<45 |
TDTG40/23 |
¢400 |
26 |
11 |
4 |
80 |
<45 |
TDTG40/28 |
¢400 |
30 |
18 |
4 |
80 |
<45 |
TDTG50/18 |
¢500 |
35 |
14 |
5 |
84 |
<45 |
TDTG50/23 |
¢500 |
62 |
24 |
5 |
84 |
<45 |
TDTG50/28 |
¢500 |
76 |
30 |
5 |
84 |
<45 |
TDTG50/33 |
¢500 |
|
10 (pasture) |
5 |
72 |
<45 |

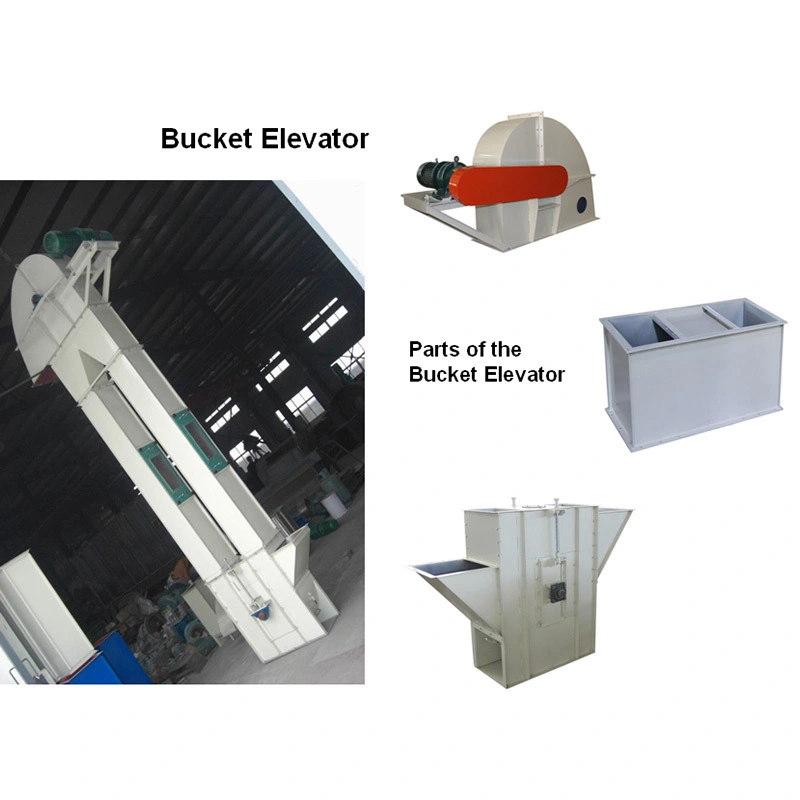

Product Display
