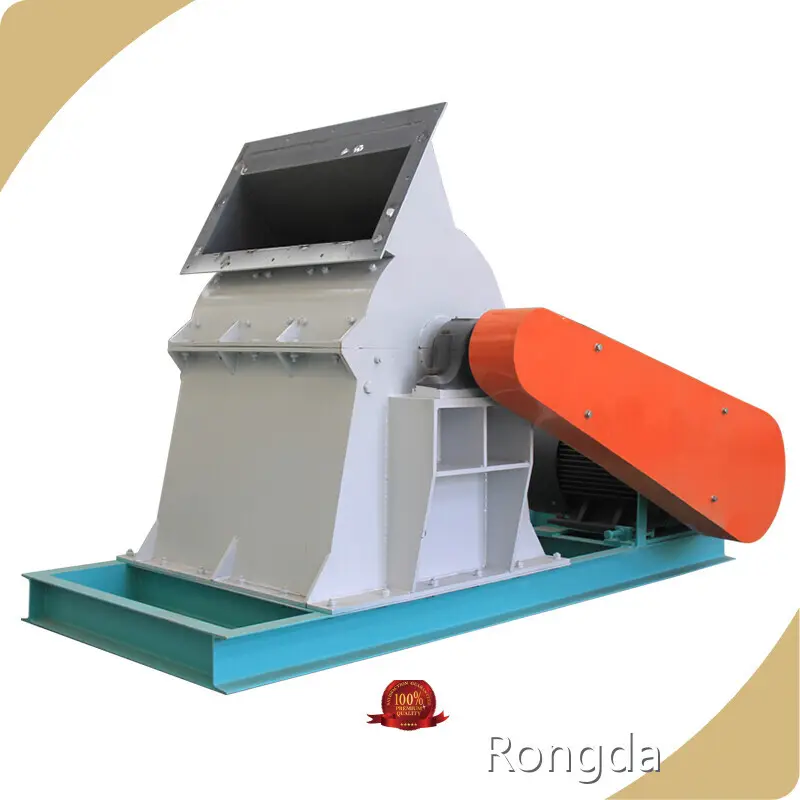

Product details of the wood hammer mill machine
Product Information
The whole manufacture process for Rongda wood hammer mill machine is finished by our experienced pprofessionals by using the latest advanced equipment. Through a rigorous quality control system, the stability of this product is ensured. With so many advantages, lots of customers have made repeat purchases, showing the great market potential of this product.
Description
Hammer mill for coarse grinding Description:
Grind various irregular raw material with thickness ≤20mm.
1. Rotor is with dynamic balance test with high accuracy (G6.3 grade), vibration is small and the lifetime is long.
2. Knife, screen and pin shaft been specially heat treated are with long lifetime and high grinding efficiency.
3. Operation door is equipped with self-lock device which is convenient, flexible, safe and stable.
Technical Parameter
Model |
SFSP60×70 |
SFSP60×100 |
SFSP60×120 |
Rotor dia. (mm) |
600 |
600 |
600 |
Main shaft linear speed (rpm) |
3370 |
3370 |
3370 |
Knife linear speed (m/s) |
106 |
106 |
106 |
Width of grinding chamber (mm) |
700 |
980 |
1170 |
Qty. of knife |
42 |
60 |
72 |
Power (KW) |
55/75 |
90/110 |
132/160 |
Capacity (t/h) |
1-2 |
2.5-3 |
3.5-4.5 |
