Product details of the pellet cooling machine
Product Description
Rongda pellet cooling machine is designed under the guidance of skilled engineers with vast experiences in this domain. The combination of advanced production technology and superior material can fully guaranteed the quality of this product. Liyang Rongda Machinery Co.Ltd can always hold the accurate prediction of the functions and style requirements of pellet cooling machine all over the years.
Description
● Vibration cooler is the combination of counter-flow cooler and vibration screener and is more applicable for small pellet line. It has characteristics of good performance and low cost.
● Cooling part adopts the counter-flow principle which avoid the crack of pellets by cold wind connecting with hot material directly.
● The principle of screening part is same as vibration screener which is driven by belt.
● Combination of two reduces the land occupation and the cost.
Technical Parameter
Parameters / Model |
SKLN1.5-ZD |
SKLN2.5-ZD |
SKLN3-ZD |
SKLN4-ZD |
Cooling volume (m3) |
1.5 |
2.5 |
3 |
4 |
Capacity (t/h) |
3 |
5 |
7 |
10 |
Cooling time (min) |
not less than 10-15 min |
|||
Material temperature after cooling |
not 5℃ higher than room temperature |
|||
Air volume (m3/min.t) |
34 |
|||
Power (KW) |
1.1 |
1.1 |
1.1 |
1.5 |
Power of airlock (kw) |
0.55 |
0.75 |
0.75 |
0.75 |
Power of vibration motor (kw) |
0.2*2 |
0.2*2 |
0.2*2 |
0.2*2 |

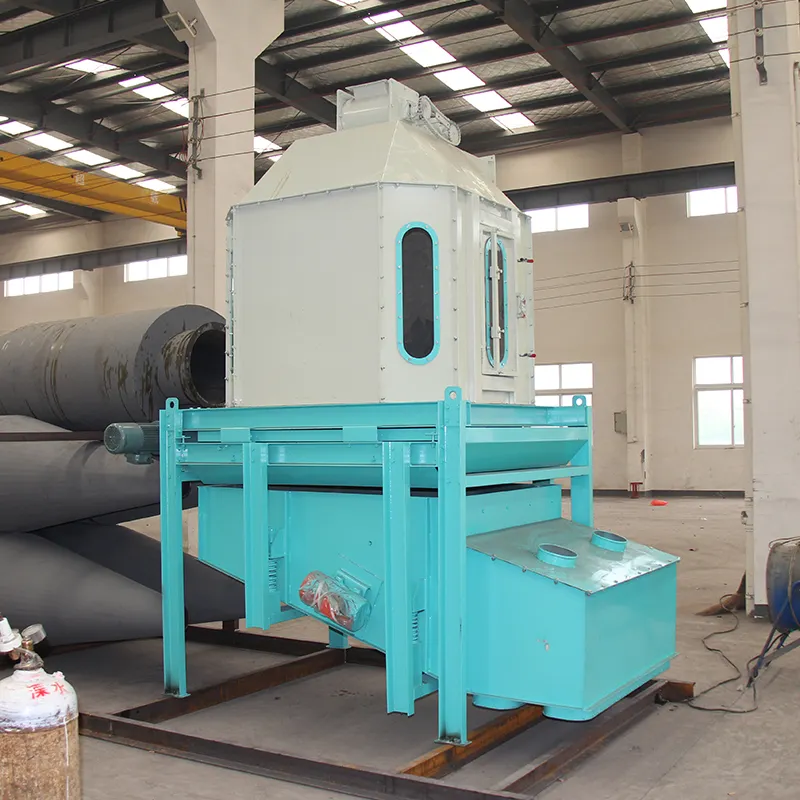

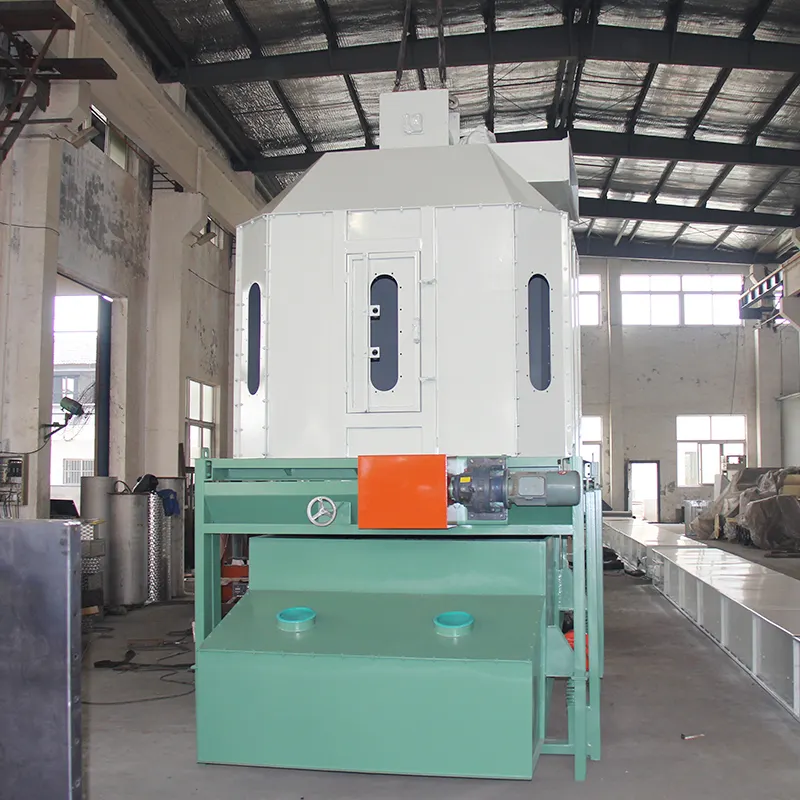

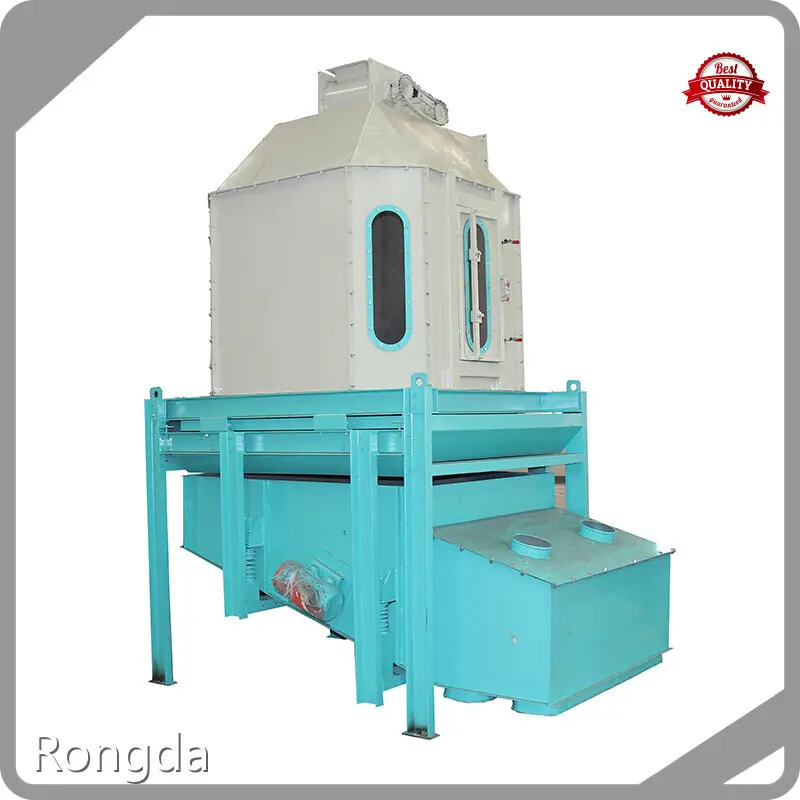

Product Display
