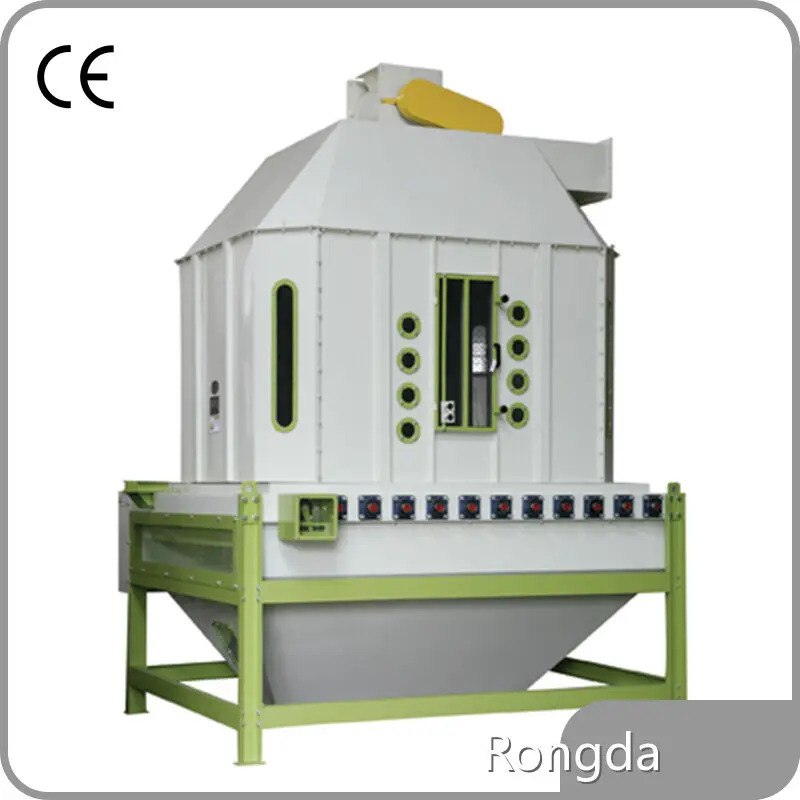

Product details of the pellet cooler machine
Product Introduction
Strictly selected raw materials: Rongda pellet cooler machine is made from top grade raw materials which are all well-selected and then are quickly put into precision production. The product has high quality as it is manufactured in accordance with the quality standards of the industry. As long as other outer packing request from our customers is reasonable, Liyang Rongda Machinery Co.Ltd will be willing to have a try.
Description
1. The counter-flow cooling principle is adopted to cool the pellets with high temperature and moisture. Hot air touches hot pellets and cool air touches cool pellets so as to avoid the pellet surface cracking caused by sudden cooling produced by direct touch between cool air and hot pellets. At the same time, the airlock is used for feeding and space of air inlet is bigger, therefore it can get better cooling effects.
2. Swing discharger has smooth and reliable discharging with less residue.
3. Low power consumption, easily operation.
4. Pellet temperature after cooling is not 3-5℃ higher than room temperature.
5. It is suitable for pellet cooling.
Technical Parameter
Model |
SKLB2.5 |
SKLB4 |
SKLB6 |
SKLB8 |
SKLB10 |
SKLB12 |
Capacity (t/h) |
5 |
10 |
15 |
20 |
25 |
30 |
Cooling volume (m3) |
2.5 |
4 |
6 |
8 |
10 |
12 |
Cooling time (min) |
not less than 6-10min |
|||||
Finished Temp. |
No 3-5℃ higher than room temperature |
|||||
Power (kw) |
1.5+0.55 |
1.5+0.55 |
1.5+0.55 |
1.5+0.55+1.1 |
1.5+1.1+0.75 |
1.5+1.1+0.75 |
Product Display
