Product details of the wood pellet conveyor system
Product Description
The production of Rongda wood pellet conveyor system is highly efficient and completed by using advanced production equipment. Annual recertification audits verify that its quality standards are maintained. With so many remarkable advantages, the prospect of the product in the future market application is brilliant.
Description 01
● Compact structure, small cross-sectional dimensions, can significantly save area.

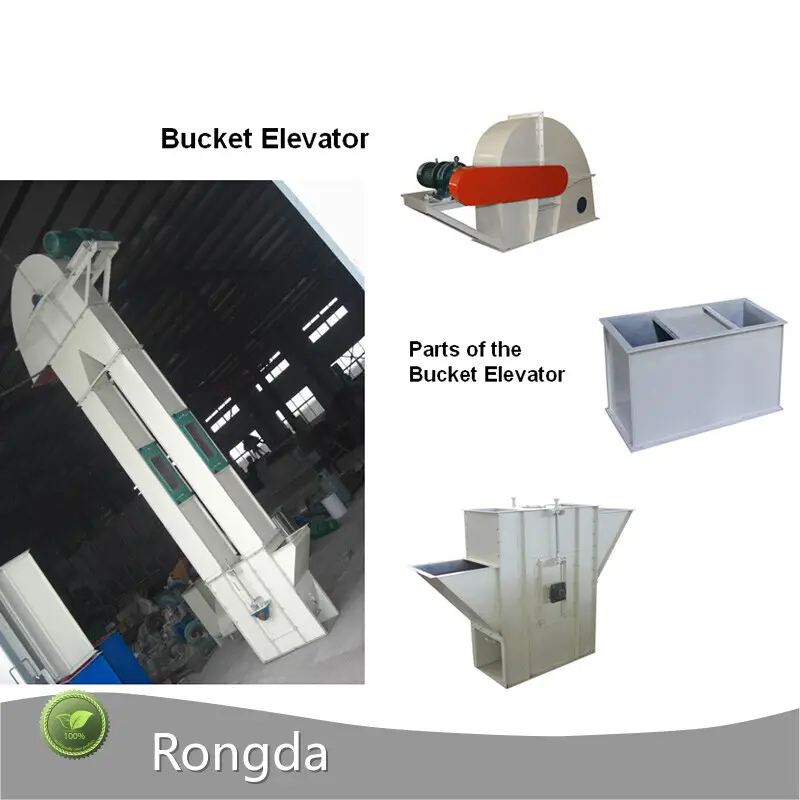

● Head
Head round the use of plastic bag technology,increasing the coefficient of friction,improving transmission efficiency;nose segment increased discharge height,extend the material discharge time,and there is no exit adjusting plate and buffer chamber , effectively reducing the material back ; lined hood can Replacing super wear-resistant polymer material.
● Barrel
Using undercut edge bite machine technology,good strength, good sealing;additional balance pipe between the two cylinder pressure balance balanced body;big open door type overhaul operation,easy maintenance and replacement bucket;has a vent port,which can effectively ground pressure relief vent.
Description 02
● Base
The new shaft seal structure to prevent dust leakage.Using split bearing structure,ensure equipment reliability;adjustment plate sealing device equipped prescribe overcome the adjustment plate powder leakage,leakage of material phenomena.
● The device is equipped with anti-kickback device,to avoid blocking machine problems caused by power failure.
● deviation can be detected and an alarm device to ensure safety in accordance with user requirements matching normal production speed.
Technical Parameter
Model
|
Head wheel dia.(mm)
|
Throughput |
Bucket quantity (pc/m)
|
Rotating speed(rpm)
|
Maximum lift height (m)
|
|
Pellet (t/h) |
Mash (t/h) |
|||||
TDTG40/18 |
¢400 |
14.5 |
8 |
4 |
80 |
<45 |
TDTG40/23 |
¢400 |
26 |
11 |
4 |
80 |
<45 |
TDTG40/28 |
¢400 |
30 |
18 |
4 |
80 |
<45 |
TDTG50/18 |
¢500 |
35 |
14 |
5 |
84 |
<45 |
TDTG50/23 |
¢500 |
62 |
24 |
5 |
84 |
<45 |
TDTG50/28 |
¢500 |
76 |
30 |
5 |
84 |
<45 |
TDTG50/33 |
¢500 |
|
10 (pasture) |
5 |
72 |
<45 |
Product Display
