Rongda Food Pellet Making Machine
Product Features
Feed pellet machine is widely used in the field of poultry and livestock feed pellet making. Feed pellet mill is the main machine for producing pellet feed and is applicable to large and medium-scaled feed plant with different outputs of pellet feed.
1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; variable pitch anti-bridgng structre; Imported FC control;
3. LL stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;
5. Gearbox and driving holes’ accuracy are guaranteed by specialized casting supplier and NCC;
6. The bearing and oil seal in the main drive are imported, and especially lubrication oil return system is available to ensure reliable bearing lubrication;
7. 2 piece quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel wit high anti-corrosion ability and long service life;
9. The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable use.
Technical Parameter
|
Model |
Main power (kw) |
Capacity (t/h) |
Feeder motor (kw) |
Conditioner motor (kw) |
Die Dia. (mm) |
|
RD250 |
22 |
0.5-1.5 |
0.55 |
2.2 |
250 |
|
RD320 |
37 |
2-3 |
0.75 |
2.2 |
320 |
|
RD350 |
55 |
3-5 |
0.75 |
3 |
350 |
|
RD400 |
75/90 |
3-10 |
1.5 |
5.5 |
400 |
|
RD420 |
90/110 |
3-14 |
1.5 |
5.5 |
420 |
|
RD508 |
110/132/160 |
6-15 |
2.2 |
7.5 |
508 |
|
RD558 |
160/185 |
10-20 |
2.2 |
11 |
558 |
|
RD678 |
185/220 |
15-25 |
3 |
15 |
673 |
|
RD768 |
220/250 |
25-30 |
3 |
18.5 |
763 |

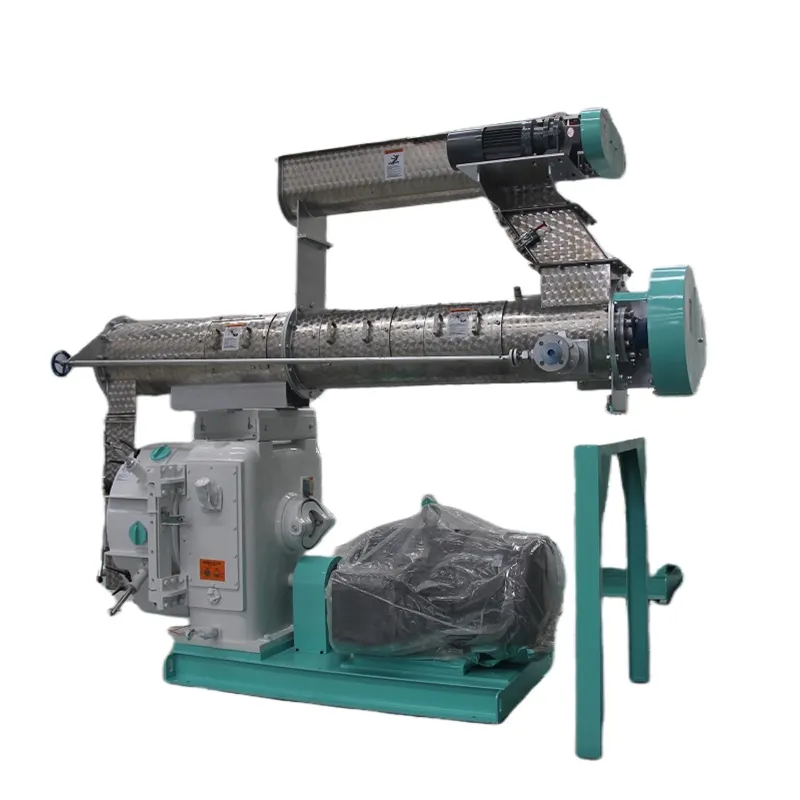

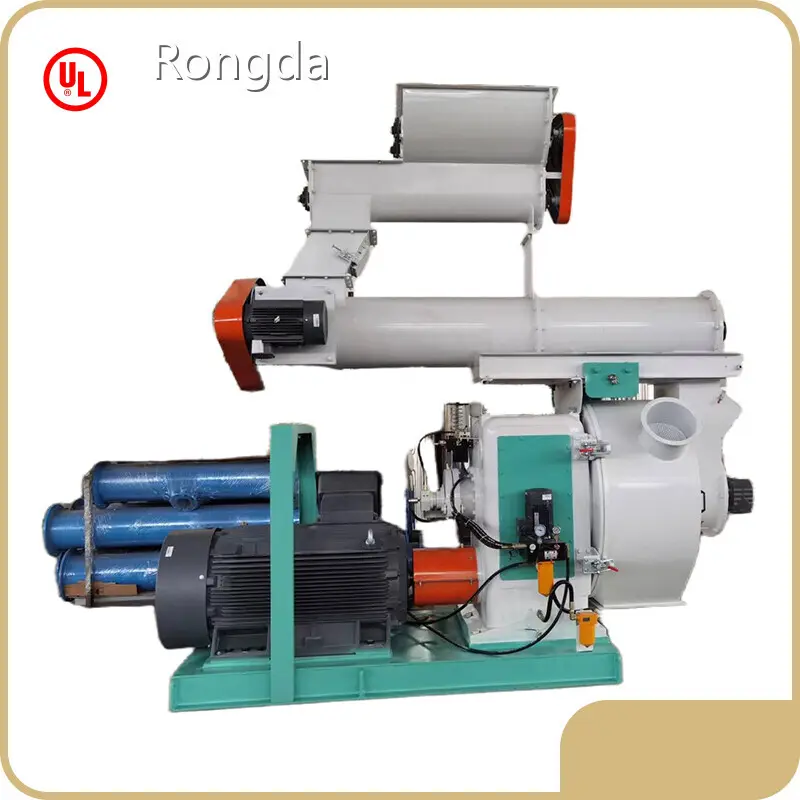

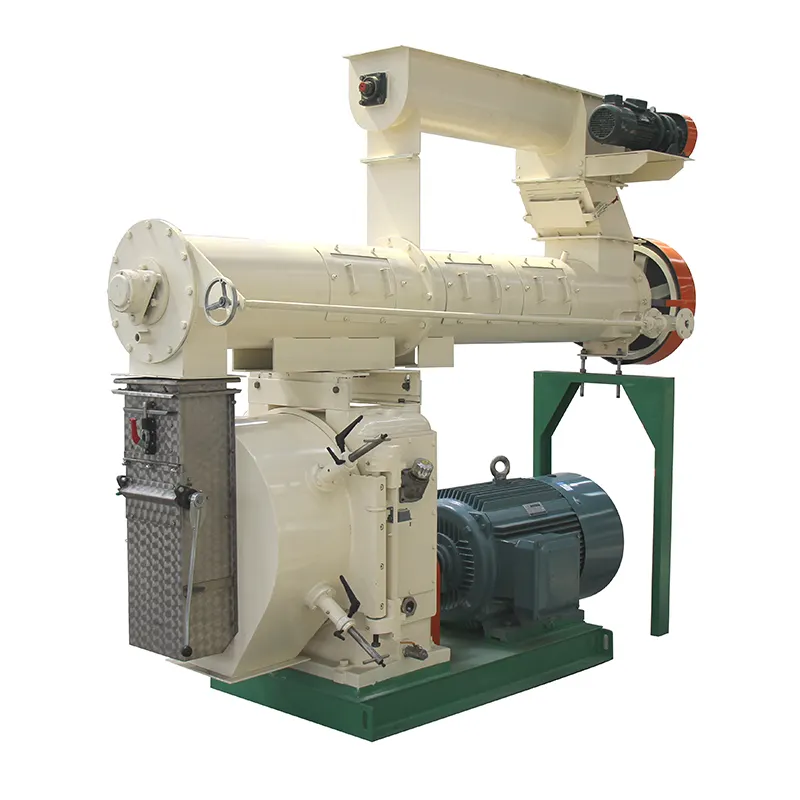

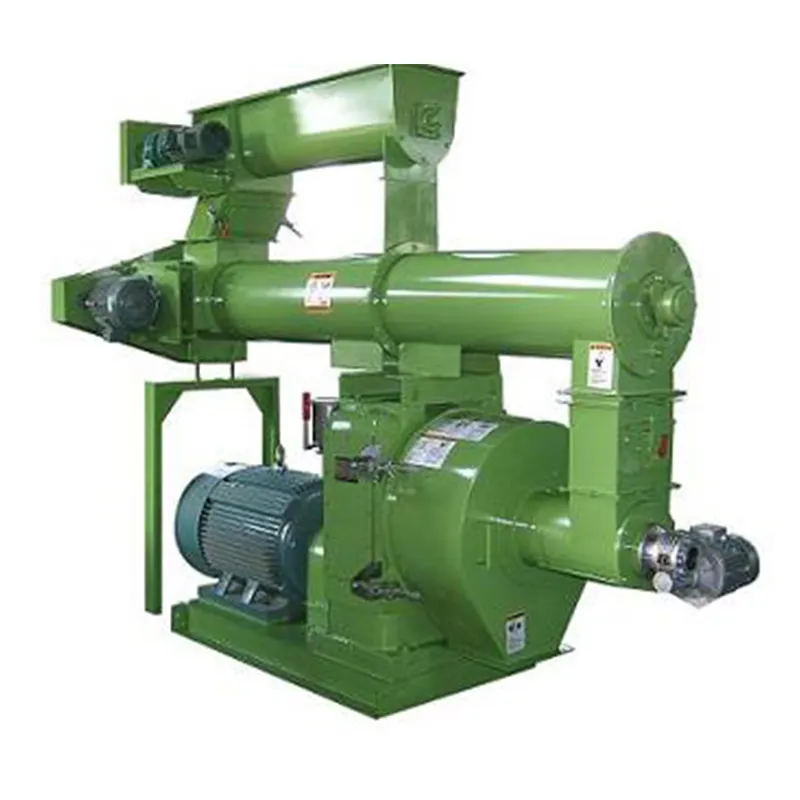

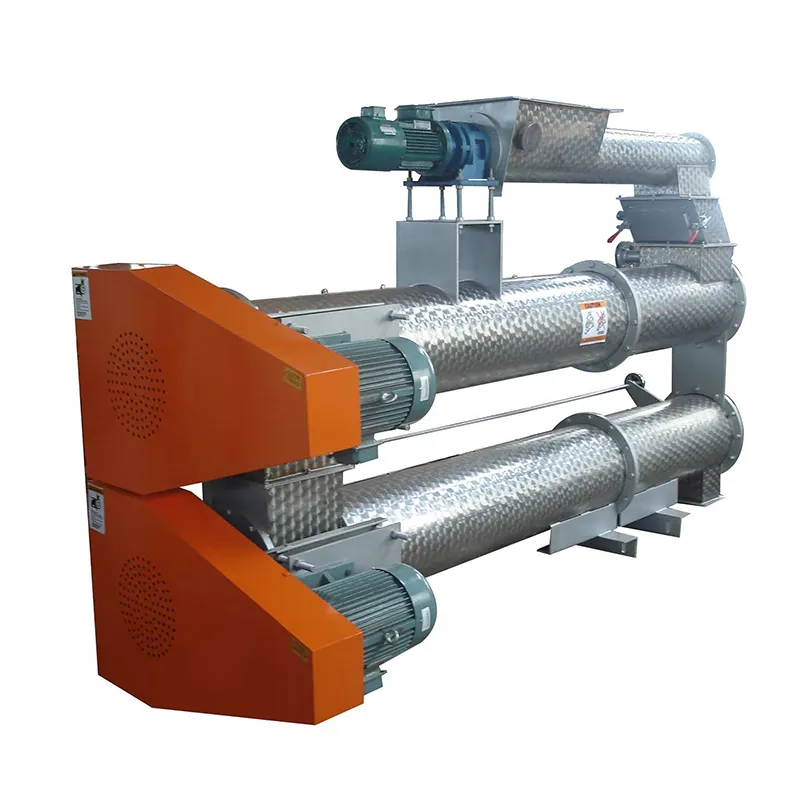

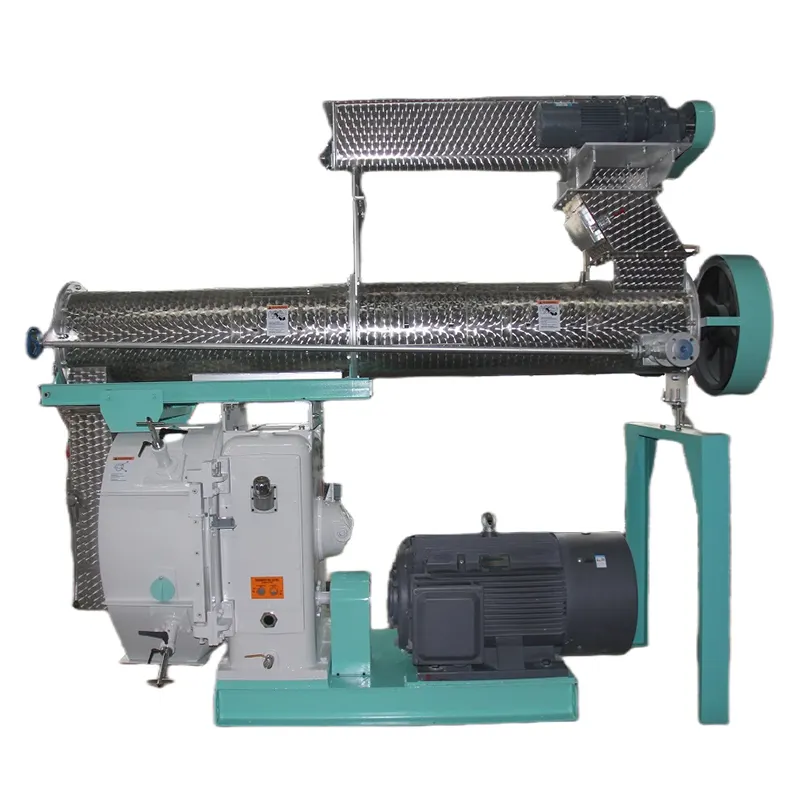

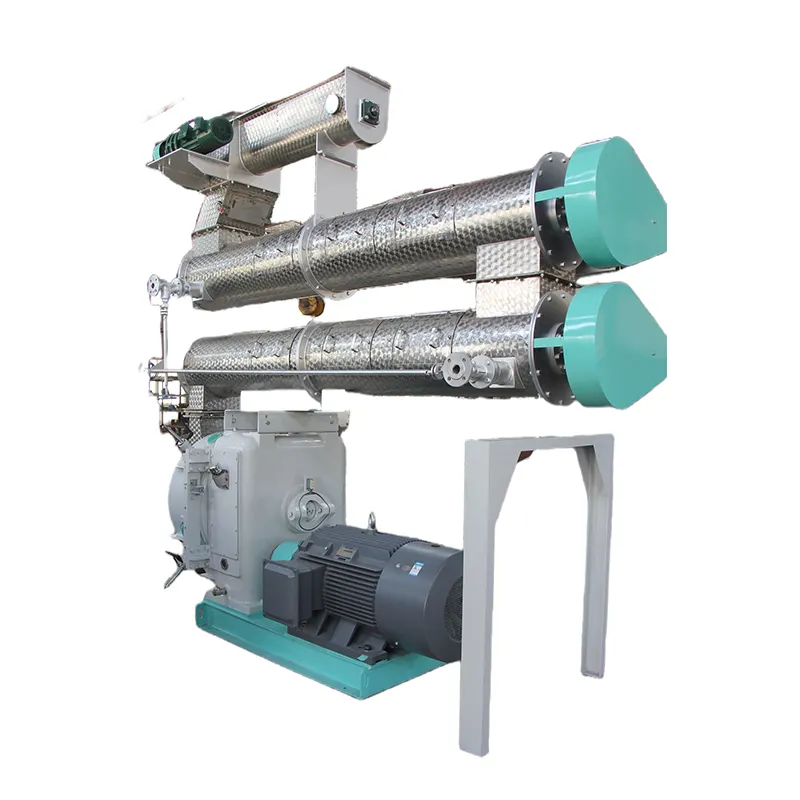

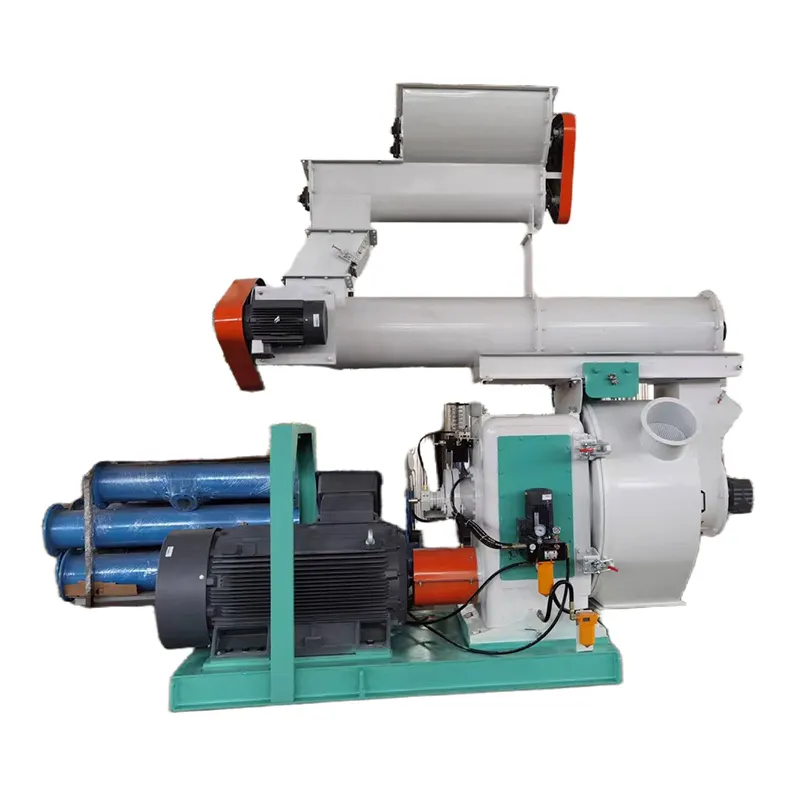

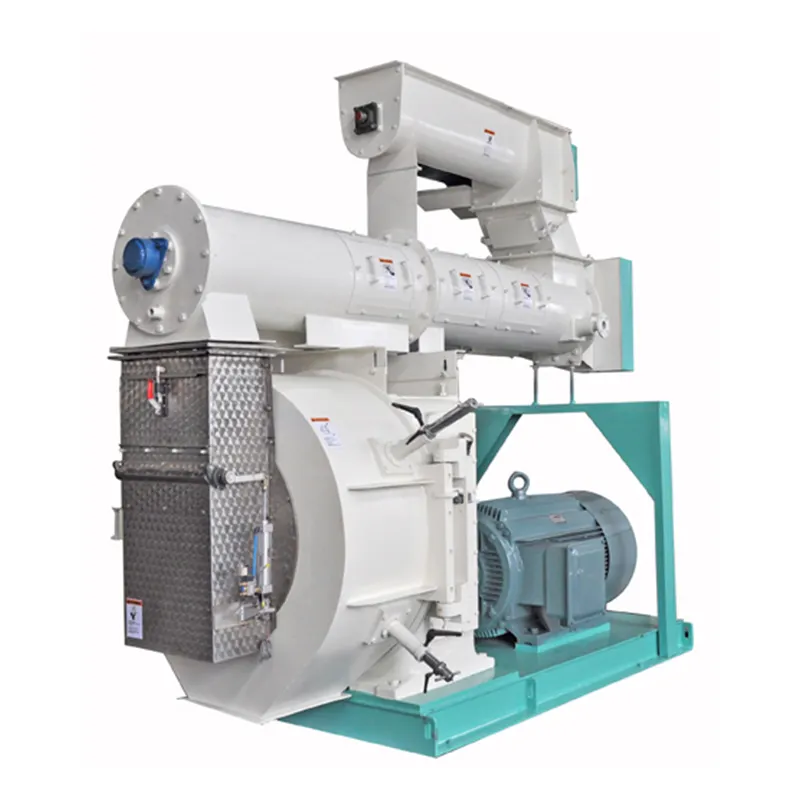

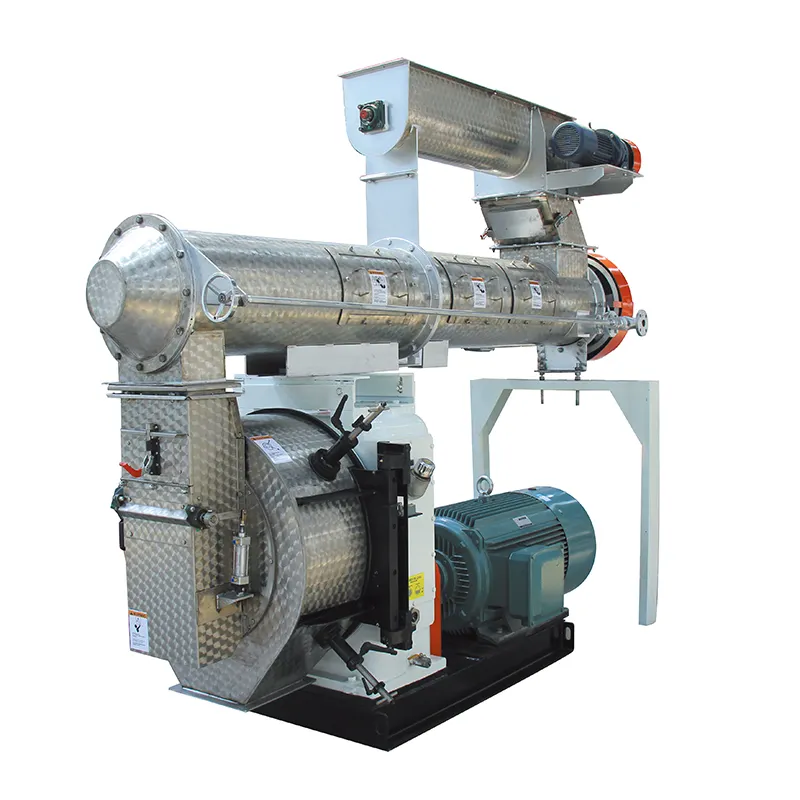

Product Display
Company Advantages
· Rongda food pellet making machine is designed according to the latest market trend.
· The superior performance of the product is crowd-pleasing in the market.
· Liyang Rongda Machinery Co.Ltd believes doing business must dare to become the forefront of the industry.
Application of the Product
Our food pellet making machine meets the needs of multiple industries and fields.
In the early stage, we conduct a communication survey to gain an in-depth understanding of the customer's problems. Therefore, we can develop solutions that best suit the customers based on the results of the communication survey.
