Product details of the pellet cooler
Quick Overview
Rongda pellet cooler is designed by our experienced designers that are leaders in the industry. This product has been well received by customers for its high performance and durability. The pellet cooler produced by our company can be used in many fields. The product has been considered to have a wide development prospect.
Product Information
Rongda will present you pellet cooler's details in the following section.
Description

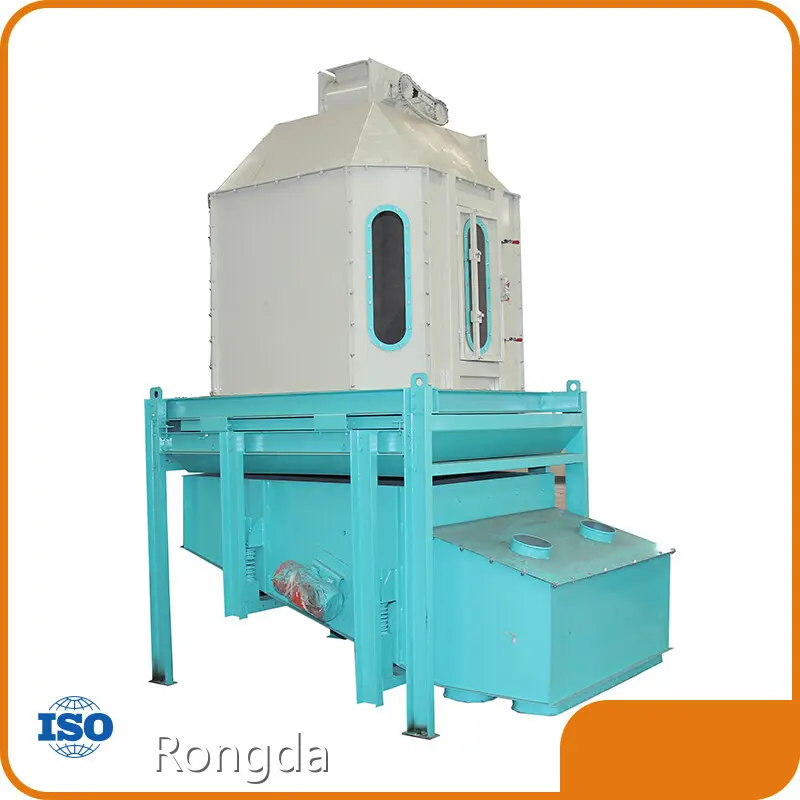

● Vibration cooler is the combination of counter-flow cooler and vibration screener and is more applicable for small pellet line. It has characteristics of good performance and low cost.
● Cooling part adopts the counter-flow principle which avoid the crack of pellets by cold wind connecting with hot material directly.
● The principle of screening part is same as vibration screener which is driven by belt.
● Combination of two reduces the land occupation and the cost.
Technical Parameter
|
Parameters / Model |
SKLN1.5-ZD |
SKLN2.5-ZD |
SKLN3-ZD |
SKLN4-ZD |
|
Cooling volume (m3) |
1.5 |
2.5 |
3 |
4 |
|
Capacity (t/h) |
3 |
5 |
7 |
10 |
|
Cooling time (min) |
not less than 10-15 min |
|||
|
Material temperature after cooling |
not 5℃ higher than room temperature |
|||
|
Air volume (m3/min.t) |
34 |
|||
|
Power (KW) |
1.1 |
1.1 |
1.1 |
1．5 |
|
Power of airlock (kw) |
0.55 |
0.75 |
0.75 |
0.75 |
|
Power of vibration motor (kw) |
0.2*2 |
0.2*2 |
0.2*2 |
0.2*2 |
Product Display
Company Introduction
Liyang Rongda Machinery Co.Ltd (Rongda), is a company located in chang zhou. Our main business is the production and sales of Biomass Machinery,Feed Machinery,Pellet Mill. Our company continuously innovates the service management ability to improve the service quality. It is specifically reflected in the establishment and improvement of the pre-sale, sale and after-sales service systems. All customers are sincerely welcomed to contact us for consultation!
