Rongda Biomass Pellet Machine Suppliers
Description
● The drum chipper is the special equipment for producing perfect chips, and it is used in paper plants, particle board plants, fiber-broad plants, chip production and export bases. By which, logs and small wood are cut into high quality with even length and uniform chip thickness. It is also suitable for the chipping of branches and twigs, and planks.
● The chip length is different in accordance with the requirements of paper plants, particular broad and fiber-board industries. In order to meet this need, our company has improved different kinds of drum chippers recently, and the new type machines have more advantages. All the features show that it is an ideal equipment for chip production.
Technical Parameter
|
Model |
BX216 |
BX218 |
BX218D |
BX2110 |
BX2113 |
|
Rotor diameter (mm) |
650 |
800 |
800 |
1000 |
1300 |
|
Number of fly-cutter (piece) |
3 |
3 |
3 |
3×2 |
3 |
|
Feeding inlet (mm) |
280×500 |
330×770 |
330×770 |
400×1050 |
450×700 |
|
Rotating speed (rpm) |
590 |
650 |
650 |
550 |
420 |
|
Feeding speed (m/min) |
37 |
37 |
38 |
38 |
35 |
|
Feeding max diameter (mm) |
150 |
250 |
250 |
330 |
400 |
|
Chip length (mm) |
20-30 |
22-30 |
22-30 |
25-35 |
25-35 |
|
Capacity (t/h) |
4-6 |
5-8 |
7-11 |
22-30 |
22-30 |
|
Main power (KW) |
55 |
110 |
132 |
220 |
200-250 |
|
Feeding motor power (KW) |
3×2 |
4×2 |
4×2 |
7.5×2 |
7.5×2 |
|
Weight (t) |
4.5 |
7 |
7.5 |
11.5 |
13 |
|
Overall size (mm) |
4348×1730×1250 |
4670×2150×1500 |
2200×2150×1500 |
4340×3550×1500 |
3670×2517×2050 |

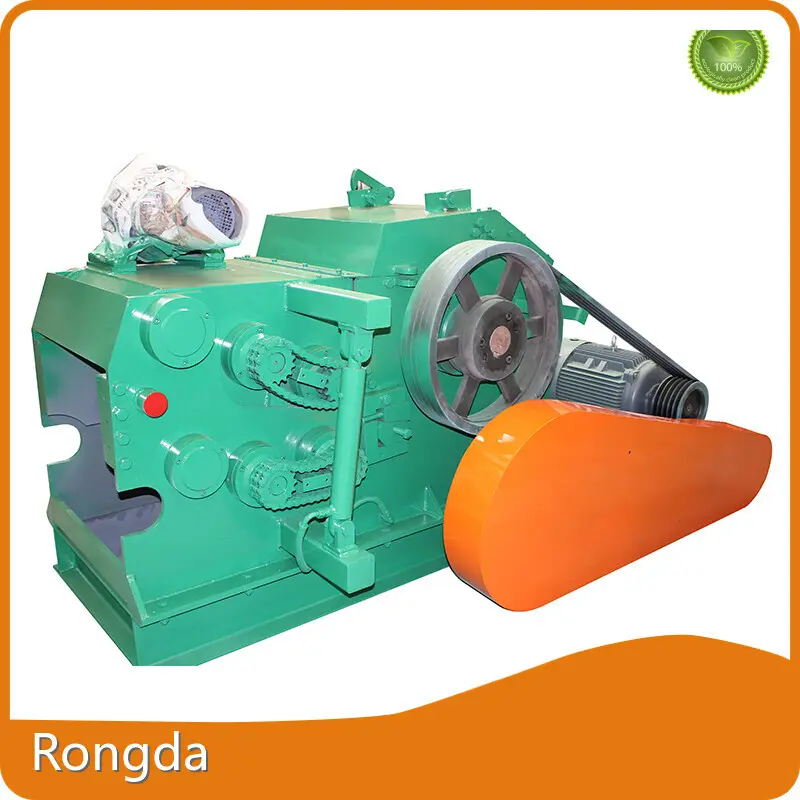

Product Display
Company Advantages
· Rongda biomass pellet machine is developed with professional design concepts.
· The quality check team is totally responsible for the quality of this product.
· This product is currently very popular in the market and is being adopted by more and more people.
Company Features
· Liyang Rongda Machinery Co.Ltd is the company that offers the biomass pellet machine solutions designed specifically to cover all needs of each one of its customers.
· Liyang Rongda Machinery Co.Ltd has its own large-scale factory and R&D team.
· Rongda tries to be the most dominant biomass pellet machine supplier. Contact!
Application of the Product
The biomass pellet machine produced by our company is widely recognized by customers and widely used in field.
We have a professional team and can provide customers with the most appropriate solutions to help customers achieve their goals quickly and effectively.
