Rongda Animal Pellet Making Machine Manufacturers
Company Advantages
· Rongda animal pellet making machine is fabricated employing quality-approved raw materials.
· Our professional team guarantees high quality and stable performance.
· Customers are rather positive to the market application of the product.
Product Features

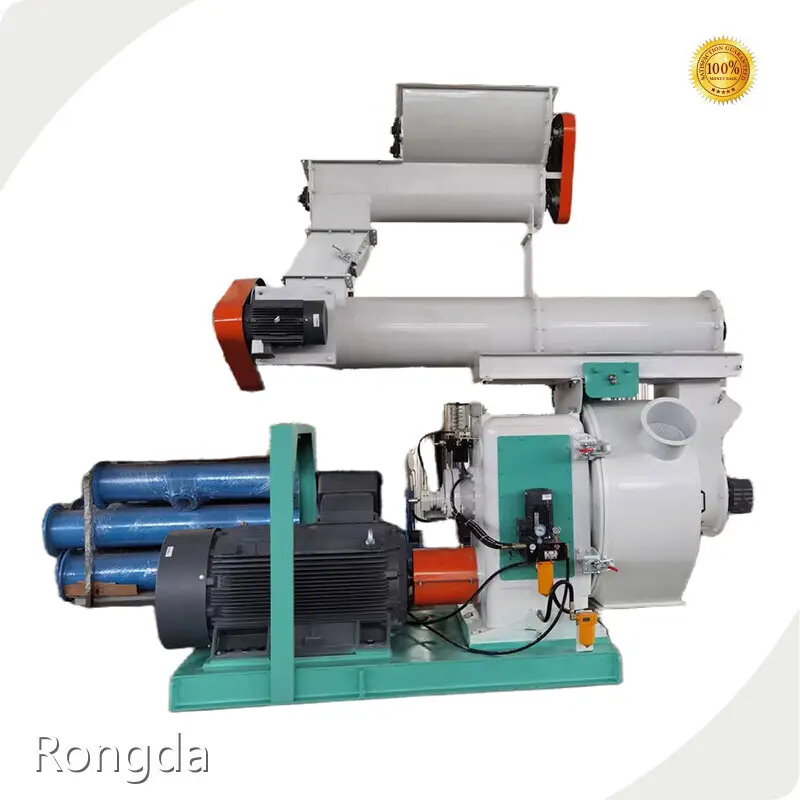

Feed pellet machine is widely used in the field of poultry and livestock feed pellet making. Feed pellet mill is the main machine for producing pellet feed and is applicable to large and medium-scaled feed plant with different outputs of pellet feed.
1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; variable pitch anti-bridgng structre; Imported FC control;
3. LL stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;
5. Gearbox and driving holes’ accuracy are guaranteed by specialized casting supplier and NCC;
6. The bearing and oil seal in the main drive are imported, and especially lubrication oil return system is available to ensure reliable bearing lubrication;
7. 2 piece quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel wit high anti-corrosion ability and long service life;
9. The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable use.
Technical Parameter
|
Model |
Main power (kw) |
Capacity (t/h) |
Feeder motor (kw) |
Conditioner motor (kw) |
Die Dia. (mm) |
|
RD250 |
22 |
0.5-1.5 |
0.55 |
2.2 |
250 |
|
RD320 |
37 |
2-3 |
0.75 |
2.2 |
320 |
|
RD350 |
55 |
3-5 |
0.75 |
3 |
350 |
|
RD400 |
75/90 |
3-10 |
1.5 |
5.5 |
400 |
|
RD420 |
90/110 |
3-14 |
1.5 |
5.5 |
420 |
|
RD508 |
110/132/160 |
6-15 |
2.2 |
7.5 |
508 |
|
RD558 |
160/185 |
10-20 |
2.2 |
11 |
558 |
|
RD678 |
185/220 |
15-25 |
3 |
15 |
673 |
|
RD768 |
220/250 |
25-30 |
3 |
18.5 |
763 |
Product Display
Company Features
· The development of Rongda benefits from the animal pellet making machine.
· Our factory is strategically located. It is close to the local airport and port, seizing a cost-competitive location for distribution in the international markets.
· Our company bears social responsibilities. We have developed a comprehensive concept of sustainability management, in order to protect the natural resources now and in the future.
Enterprise Advantages
Rongda has a professional, young and modern staff team. Our team members are brave in innovation and breakthroughs and they pay attention to actual effect and details. We are dedicated to providing quality products and services with joint efforts.
Rongda has established a professional service team which is dedicated to providing quality services for customers.
Rongda integrates employee value, enterprise value and social responsibility to form the unique corporate culture. We have won the recognition of the society and employees, and formed positive centripetal force and motivation in the company's internal and external environment.
Rongda has experienced the laborious development of years unconsciously. During these years, we have constantly pursued our dreams and have achieved self-breakthrough.
We sell our products well in the domestic market and export them to different countries and regions all over the world, depending on the high-quality product and service.
