Description
● This machine owns features of compact structure, fine appearance, convenient installation, operation and maintenance, and reliable performance;
● Dies of various hole diameter such as 6mm, 8mm, 10mm are available for this machine. Dies of different hole diameters can be customized for customers and customers can choose freely according to different requirements;
● This machine adopts a system of conversion speed-adjustable feeding and axial steam spraying, and a cleaning method of "LL" conditioner big opening, and also systems of external discharging, strong magnetic safety and overload protection, additionally, clamp type die, fully imported bearings in gearbox and power transmission through S-shaped spring coupling.
● This machine is suitable for various raw materials, like sawdust, straw, forage, mixer of sludge & sawdust, coal, etc.
Technical Parameter
Model |
Main power (KW) |
Capacity (t/h) |
Feeder power (KW) |
Die diameter (mm) |
RD-320MX |
37 |
0.2-0.3 |
1.5 |
320 |
RD-350MX |
45/55 |
0.5-0.7 |
1.5 |
350 |
RD-420MX |
90 |
0.8-1.2 |
2.2 |
420 |
RD-480MX |
90/110 |
1.2-1.5 |
2.2 |
480 |
RD-508MX |
132/160 |
1.5-2 |
5.5 |
508 |
RD-678MX |
185/200 |
2.5-3 |
11 |
673 |
RD-768MX |
220/250 |
3-3.5 |
18.5 |
763 |

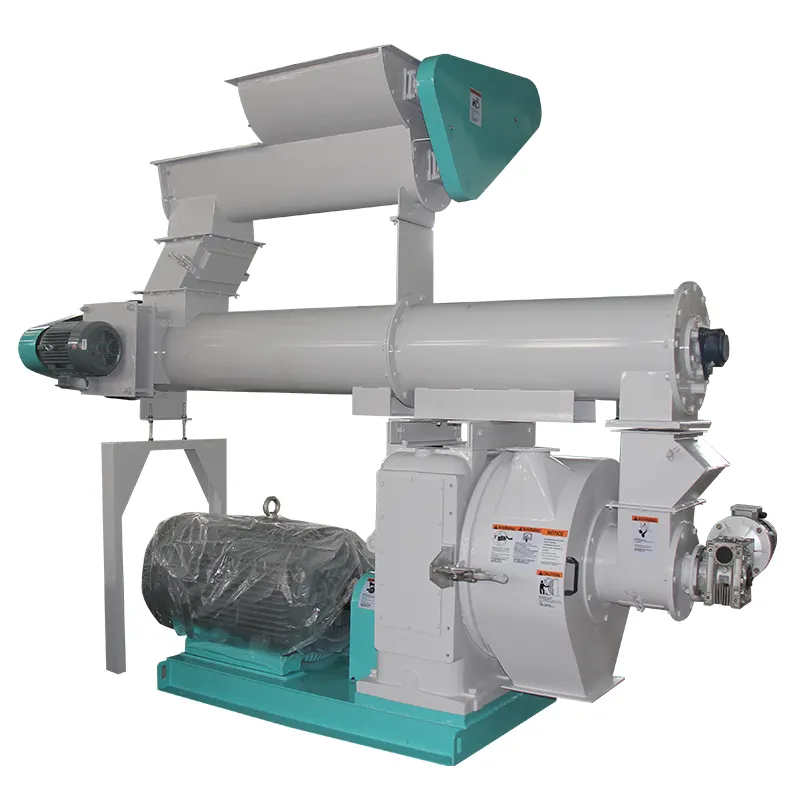

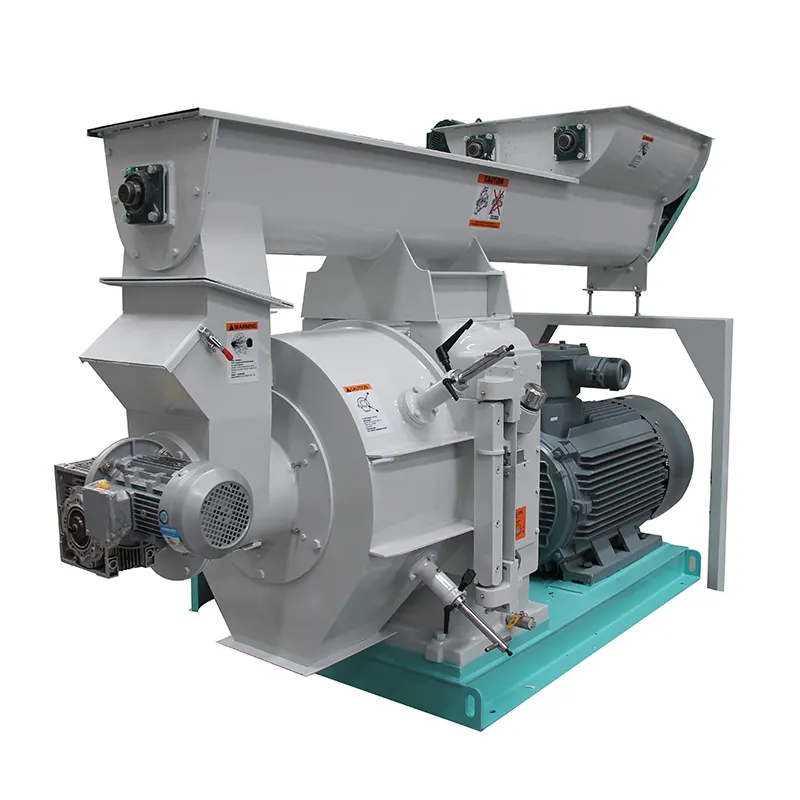

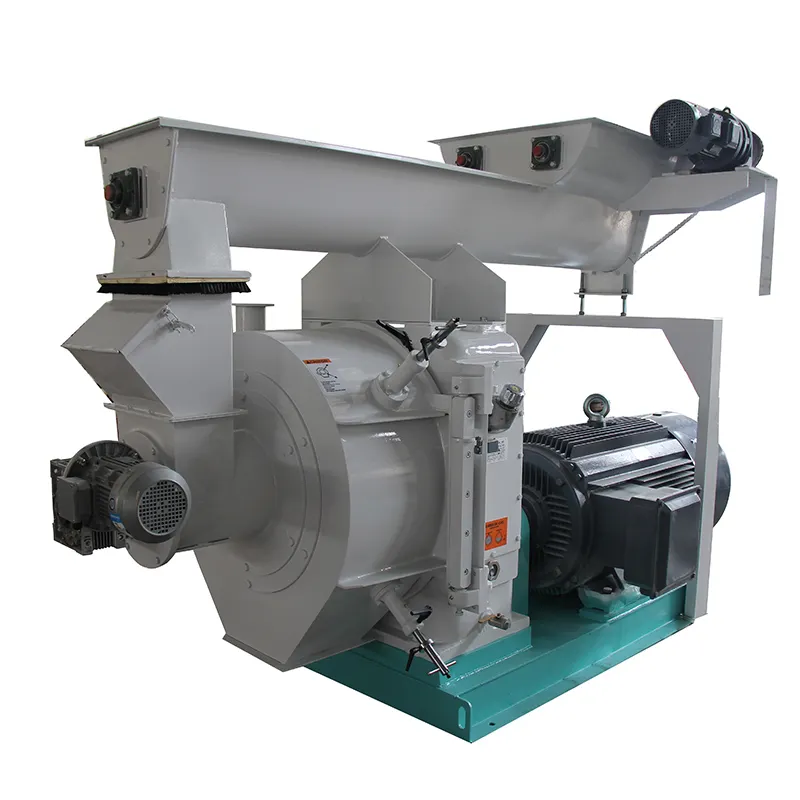

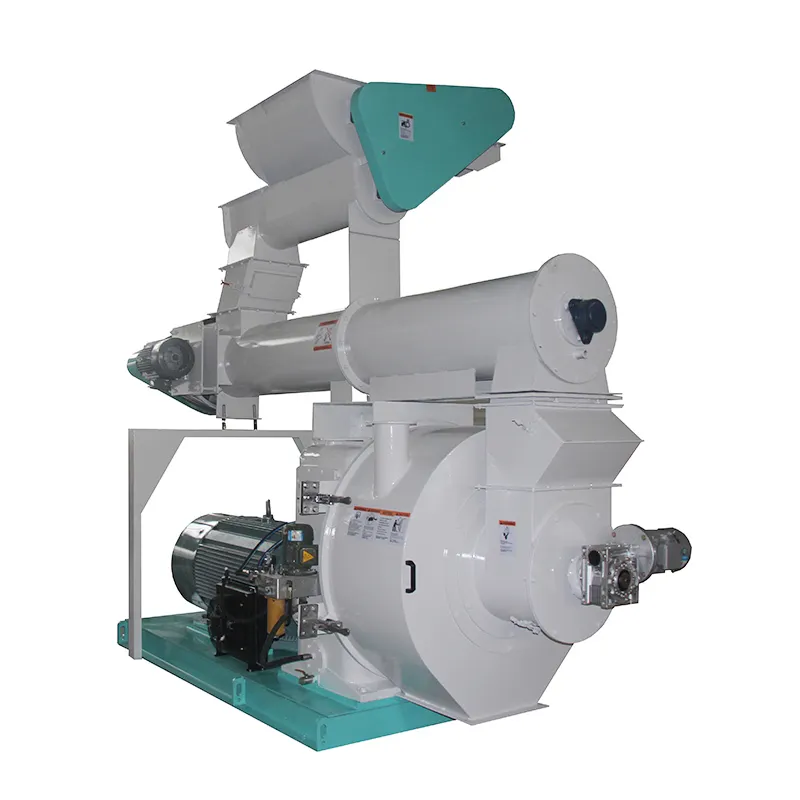

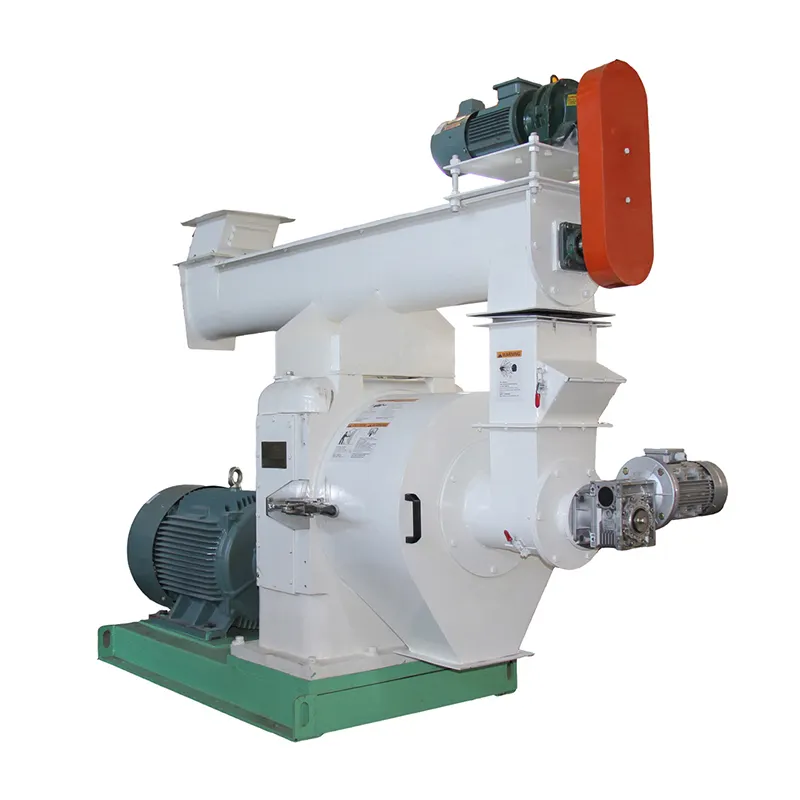

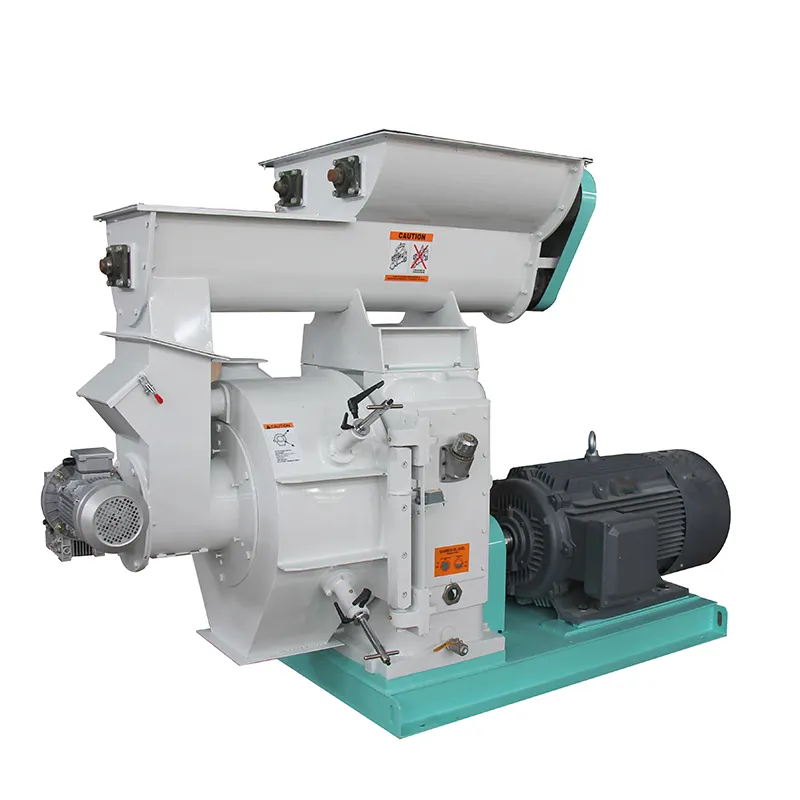

Product Display
Company Advantages
· Liyang Rongda Machinery Co.Ltd's design for paper pellet mill has always been following the concept - striving for first-rate.
· Its quality comes up to advanced world standards.
· This product has a large assortment of applications that it is suitable for.
Company Features
· Liyang Rongda Machinery Co.Ltd is dedicated to the paper pellet mill programme and delivers world-leading production efficiency.
· Liyang Rongda Machinery Co.Ltd is able to keep operational costs at a minimum and ensure all of resources are being maximized.
· Customer focus is deeply embedded into our mindset, driving us to deliver on time, on cost and on quality. We partner with our customers to satisfy their needs and deliver benefits through valuable and sustainable efforts. Inquire now!
Application of the Product
The paper pellet mill produced by Rongda has a wide range of applications.
While providing excellent products, Rongda is dedicated to providing personalized solutions for customers according to their needs and actual situations.
