Food Pellet Making Machine Rongda Company
Company Advantages
· Rongda food pellet making machine is manufactured with the support of the latest tools and equipment.
· The product meets with the most demanding requirements in all respects of performance, durability, usability, etc.
· It turns out that with complete service system, Rongda can be more popular in the global market.
Product Features

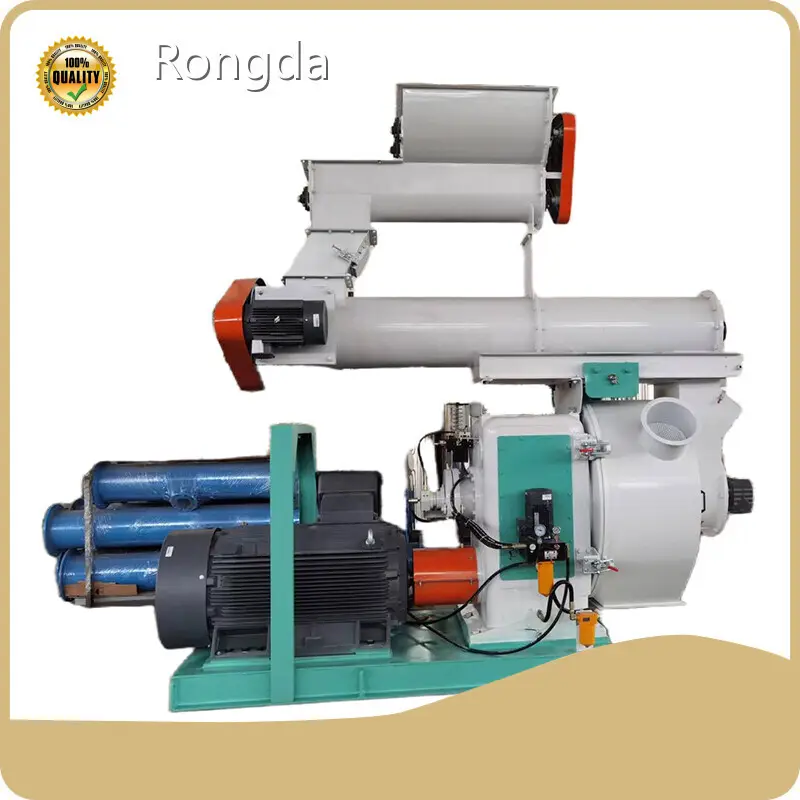

Feed pellet machine is widely used in the field of poultry and livestock feed pellet making. Feed pellet mill is the main machine for producing pellet feed and is applicable to large and medium-scaled feed plant with different outputs of pellet feed.
1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; variable pitch anti-bridgng structre; Imported FC control;
3. LL stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;
5. Gearbox and driving holes’ accuracy are guaranteed by specialized casting supplier and NCC;
6. The bearing and oil seal in the main drive are imported, and especially lubrication oil return system is available to ensure reliable bearing lubrication;
7. 2 piece quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel wit high anti-corrosion ability and long service life;
9. The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable use.
Technical Parameter
|
Model |
Main power (kw) |
Capacity (t/h) |
Feeder motor (kw) |
Conditioner motor (kw) |
Die Dia. (mm) |
|
RD250 |
22 |
0.5-1.5 |
0.55 |
2.2 |
250 |
|
RD320 |
37 |
2-3 |
0.75 |
2.2 |
320 |
|
RD350 |
55 |
3-5 |
0.75 |
3 |
350 |
|
RD400 |
75/90 |
3-10 |
1.5 |
5.5 |
400 |
|
RD420 |
90/110 |
3-14 |
1.5 |
5.5 |
420 |
|
RD508 |
110/132/160 |
6-15 |
2.2 |
7.5 |
508 |
|
RD558 |
160/185 |
10-20 |
2.2 |
11 |
558 |
|
RD678 |
185/220 |
15-25 |
3 |
15 |
673 |
|
RD768 |
220/250 |
25-30 |
3 |
18.5 |
763 |
Product Display
Company Features
· As a top supplier of high-quality food pellet making machine, Liyang Rongda Machinery Co.Ltd is internationally renowned.
· We are delighted that our stunning development has won many awards. These awards are a testament to the continued care and attention we put into all of the projects.
· We are honest and straightforward. We say what needs to be said and hold ourselves accountable. We earn the trust and confidence of others. Our integrity defines and leads us. Call now!
Product Details
Rongda's food pellet making machine has been greatly improved in the following details.
Product Comparison
Rongda's food pellet making machine has better performances, as shown below.
Enterprise Advantages
Our company has established a production and research and development team composed of senior backbones in the industry. We have also hired senior brand owners to lead the planning and contribute to our product development and brand building.
With a comprehensive management service system, Rongda is capable of providing customers with one-stop and professional services.
About our company's value, we intend to be responsible, united, practical and efficient. And for business operation, we pay great attention to service and customers, and insist on building a first-class enterprise with first-class reputation and first-class service.
After years of development and accumulation, Rongda has grown into a leader in the industry.
The sales network of our products is spread all over the world.
