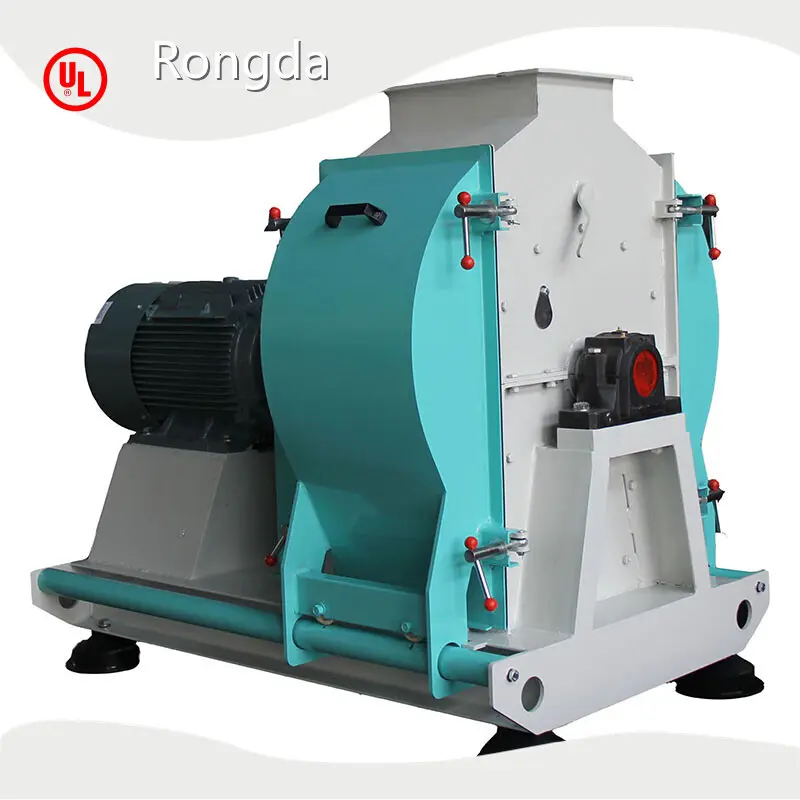

Product details of the feed hammer mill
Product Overview
The raw material of Rongda feed hammer mill undergoes a rigorous selection procedure. The quality of this product is always put in the first place by our strict QC team. Our feed hammer mill has a wide range of applications. The product has attracted much attention and is going to be more used by people from various fields.
Product Introduction
Supported by advanced technology, Rongda has a great breakthrough in the comprehensive competitiveness of feed hammer mill, as shown in the following aspects.
Product Features
1. This series of hammer mill can grind kinds of granular feed raw materials like corn, sorghum, grains, beans, etc. This series of hammer mill has coarse and fine grinding two functions;
2. This series of hammer mill adopts welding structure, the motor and the grinding rotor are installed on the same base and the operation door is provided with a safety interlock device. The rotor is calibrated by the drive balance, and the vibration is small when used.
3. This is the replaced model of SFSP ordinary hammer mill;
4. Can be equipped with self-cleaning impeller feeder, belt magnetic separation feeding and other many kinds of feeding way;
5. Without changing the screen, two kinds of grinding can be realized, coarse and fine;
6. Adopt concealed hammer rotor which can increase the efficiency by over 25%;
7. Elastic pressing screen mechanism to avoid swap material;
8. Can be equipped with wind-discharge base which is easy to install.
Technical Parameter
Model |
Rotor Dia. (mm) |
Width of grinding chamber (mm) |
Speed of rotor (r/min) |
Power(kw) |
Capacity (t/h) |
Screen hole size (mm) |
SFSP56X36 |
560 |
360 |
2970 |
15-30 |
2-4 |
¢3MM |
SFSP56X40 |
560 |
360 |
2970 |
30-37 |
3-5 |
¢3MM |
SFSP112X30 |
1120 |
300 |
2970 |
55-75 |
9-12 |
¢3MM |
SFSP112X40 |
1120 |
400 |
2970 |
75-90 |
12-15 |
¢3MM |
SFSP 65x38 |
600 |
380 |
2970 |
22/30 |
1-2 |
¢1.2MM |
SFSP 65x45 |
600 |
450 |
2970 |
45/55 |
2-4 |
¢1.2MM |
SFSP 65x60 |
600 |
600 |
2970 |
55/90 |
2-5 |
¢1.2MM |
SFSP 65x75 |
600 |
750 |
2970 |
75-90 |
3-6 |
¢1.2MM |
SFSP 65x80 |
600 |
800 |
1480 |
110-132 |
5-8 |
¢1.2MM |
SFSP 65x100 |
600 |
800 |
1480 |
132-160 |
6-10 |
¢1.2MM |
Product Display
Company Information
Liyang Rongda Machinery Co.Ltd, also known as Rongda, is a modern company in industry. We are specializing in the production, processing and sales of Biomass Machinery,Feed Machinery,Pellet Mill. In the future, Rongda will run scientific management by taking quality as the soul, by taking customer as the center and taking technology as the guarantee. We are committed to providing consumers with quality products and services. Our company attaches great importance to talent cultivation. Currently, we have established a staff team of high quality and high efficiency. It is the effective guarantee for the long-term development. With rich manufacturing experience and strong production capability, Rongda is able to provide professional solutions according to customers' actual needs.
Welcome all customers in need to purchase our products.
