Rongda Focused On Biomass Pellet Machine And Feed Pellet Machine Since 2005.

Feed Hammer Mill Company Rongda 1
Feed Hammer Mill Company Rongda 2
Feed Hammer Mill Company Rongda 3
Feed Hammer Mill Company Rongda 4
Feed Hammer Mill Company Rongda 5
Feed Hammer Mill Company Rongda 1
Feed Hammer Mill Company Rongda 2
Feed Hammer Mill Company Rongda 3
Feed Hammer Mill Company Rongda 4
Feed Hammer Mill Company Rongda 5

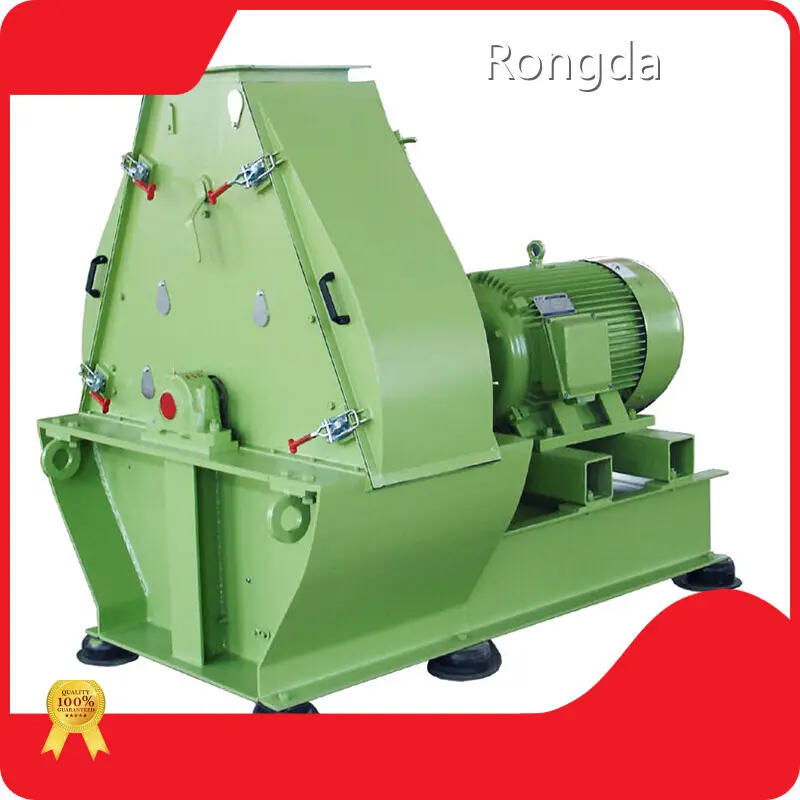

Feed Hammer Mill Company Rongda

Inquiry
Send your inquiry

Company Advantages

· The design of Rongda feed hammer mill is elaborately designed with the combination of functionality and aesthetics.

· Many customers are satisfied with the high quality of this product.

· Liyang Rongda Machinery Co.Ltd is leading company in the industry of feed hammer mill and famous for the high quality.

Product Features

1. Adopts stainless steel automatic cleaning frequency-conversion impeller feeder which has small pulsation. This machine is of frequency control and equipped with strengthened magnet plate of over 3000GS which can clear the impurities in 10 seconds;

2. Grinding chamber adopts design of two-time hitting and grinding which can improve the capacity by over 15% and makes the grinding fineness more evenly;

3. Optimized combined wearable knives permutate alternately to make finished-goods fineness more evenly;

4. Vacuum melted knives and surface-hardened hammer pin extend the service life and further decrease the consumption of spare parts. By changing the position of knives on rotor can form two kinds of gap between knife and screen which respectively suitable for ordinary and fine grinding. When doing ordinary grinding, the grinding will be even and the productivity will be improved;

5 (26)

5. When the gap between knives and screen being less, the machine can be applied to fiber grinding or fine grinding;

6. Rotors which can be rotated positively and negatively and the bi-rolling feeding reduce the consumption of spare parts. The rotors have been dynamic balancing tested making the small vibration and long lifetime;

7. The two sides of hammer mill are equipped with quick-open maintenance door which is convenient for maintenance and changing screen and can be quickly locked.

Technical Parameter

Model

Rotor Dia. (mm)

Width of grinding chamber  (mm)

Speed of rotor  (r/min)

Power(kw)

Capacity (t/h)

Screen hole size (mm)

SFSP120X40A

1200

400

1480

55-90

8-20

¢3MM

SFSP120X50A

1200

500

1480

90-132

15-23

¢3MM

SFSP120X60A

1200

600

1480

110-160

18-30

¢3MM

SFSP120X80A

1200

800

1480

160-200

25-35

¢3MM

SFSP138X40A

1200

400

1480

55-90

8-20

¢3MM

SFSP138X50A

1200

500

1480

90-132

15-23

¢3MM

SFSP138X60A

1200

600

1480

110-160

18-30

¢3MM

SFSP138X80A

1200

800

1480

160-200

25-35

¢3MM

SFSP138X100A

1200

1000

1480

200-315

30-45

¢3MM

Product Display

24 (13)
24 (13)
23 (15)
23 (15)
22 (15)
22 (15)
21 (15)
21 (15)


Company Features

· Rongda is well recognized in the feed hammer mill industry for its outstanding advantages of feed hammer mill.

· We have a team of skilled workers. They understand the importance of keeping business running and know how costly and disruptive downtime can be. We have established a professional team. They are equipped with expertise in the feed hammer mill industry, offering creative process optimizations between us and our customers.

· Liyang Rongda Machinery Co.Ltd adheres to the idea that quality is above everything else. Inquire now!


Product Details

The feed hammer mill we produce are able to stand up to the details.


Product Comparison

Our feed hammer mill is more competitive than similar products, as shown in the following aspects.


Enterprise Advantages

To develop continuously, our company has recruited talents and established an elite team. They have high technical level and strong research and development strength.

To enhance the trust and satisfaction for our company, we are committed to providing our customers with the highest quality, most advanced and professional services.

Rongda makes best effort to becoming a world-recognized first-class enterprise. We take 'producing high-quality products' as the responsibility and 'being efficient, pragmatic and innovative' as the business philosophy. Besides, we insist on the principle of 'high quality guarantees consumers' interests and honesty protects the interests of partners'.

Since Rongda was established in we have passed years of wind and rain. Our company has won many honorary qualifications for the high-quality products and services. And our industry status has been significantly improved after all these years.

Rongda's sales network continues to expand in China. The products are also exported to Central Asia, Eastern Europe, Northern Europe, and other regions.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
