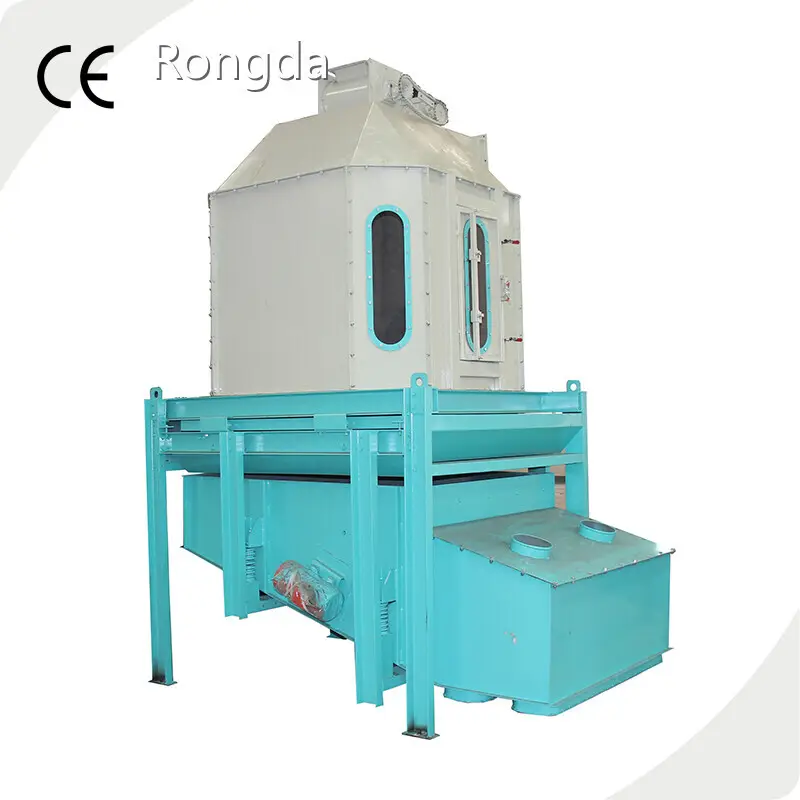

Product details of the wood pellet cooler
Quick Overview
In order to follow the trends, Liyang Rongda Machinery Co.Ltd adopts the novel design for wood pellet cooler. With its excellent quality, this product greatly reduces the possibility of return and exchange. wood pellet cooler of Rongda has very extensive application in different scenarios. The product has a bright growth prospect in the industry.
Product Information
Next, Rongda will show you the details of wood pellet cooler.
Description
● Vibration cooler is the combination of counter-flow cooler and vibration screener and is more applicable for small pellet line. It has characteristics of good performance and low cost.
● Cooling part adopts the counter-flow principle which avoid the crack of pellets by cold wind connecting with hot material directly.
● The principle of screening part is same as vibration screener which is driven by belt.
● Combination of two reduces the land occupation and the cost.
Technical Parameter
Parameters / Model |
SKLN1.5-ZD |
SKLN2.5-ZD |
SKLN3-ZD |
SKLN4-ZD |
Cooling volume (m3) |
1.5 |
2.5 |
3 |
4 |
Capacity (t/h) |
3 |
5 |
7 |
10 |
Cooling time (min) |
not less than 10-15 min |
|||
Material temperature after cooling |
not 5℃ higher than room temperature |
|||
Air volume (m3/min.t) |
34 |
|||
Power (KW) |
1.1 |
1.1 |
1.1 |
1.5 |
Power of airlock (kw) |
0.55 |
0.75 |
0.75 |
0.75 |
Power of vibration motor (kw) |
0.2*2 |
0.2*2 |
0.2*2 |
0.2*2 |
Product Display
Company Advantages
Liyang Rongda Machinery Co.Ltd is mainly engaged in wood pellet cooler production. We have established a complete quality assurance system and has obtained ISO9001: 2000 quality management system certification. Concentrating on the service quality is what each Rongda staff has been doing. Inquire!
Our products are of excellent quality and favorable price, please feel free to contact us for quotation!
