Product details of the feed machinery
Quick Detail
Our rich production experience makes sure Rongda feed machinery is perfect in craftsmanship. feed machinery is not only reliable in quality, but also easy to operate. Liyang Rongda Machinery Co.Ltd has the first-class design level and quality engineering construction management.
Product Information
Rongda's feed machinery has superior performances in the following details.
Product Features
1. Adopts stainless steel automatic cleaning frequency-conversion impeller feeder which has small pulsation. This machine is of frequency control and equipped with strengthened magnet plate of over 3000GS which can clear the impurities in 10 seconds;
2. Grinding chamber adopts design of two-time hitting and grinding which can improve the capacity by over 15% and makes the grinding fineness more evenly;
3. Optimized combined wearable knives permutate alternately to make finished-goods fineness more evenly;
4. Vacuum melted knives and surface-hardened hammer pin extend the service life and further decrease the consumption of spare parts. By changing the position of knives on rotor can form two kinds of gap between knife and screen which respectively suitable for ordinary and fine grinding. When doing ordinary grinding, the grinding will be even and the productivity will be improved;
5. When the gap between knives and screen being less, the machine can be applied to fiber grinding or fine grinding;
6. Rotors which can be rotated positively and negatively and the bi-rolling feeding reduce the consumption of spare parts. The rotors have been dynamic balancing tested making the small vibration and long lifetime;

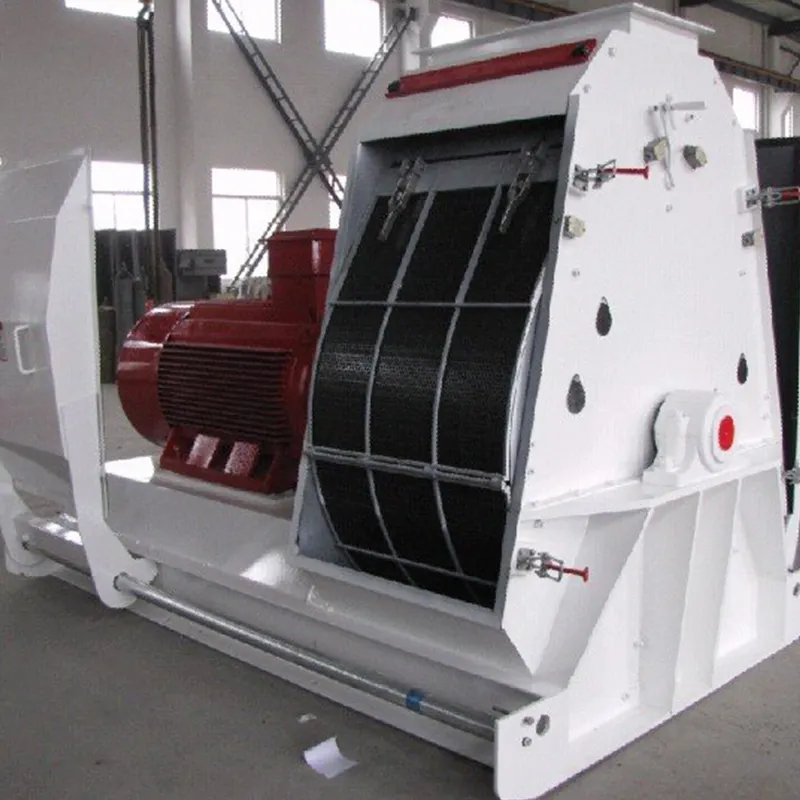

7. The two sides of hammer mill are equipped with quick-open maintenance door which is convenient for maintenance and changing screen and can be quickly locked.
Technical Parameter
Model |
Rotor Dia. (mm) |
Width of grinding chamber (mm) |
Speed of rotor (r/min) |
Power(kw) |
Capacity (t/h) |
Screen hole size (mm) |
SFSP120X40A |
1200 |
400 |
1480 |
55-90 |
8-20 |
¢3MM |
SFSP120X50A |
1200 |
500 |
1480 |
90-132 |
15-23 |
¢3MM |
SFSP120X60A |
1200 |
600 |
1480 |
110-160 |
18-30 |
¢3MM |
SFSP120X80A |
1200 |
800 |
1480 |
160-200 |
25-35 |
¢3MM |
SFSP138X40A |
1200 |
400 |
1480 |
55-90 |
8-20 |
¢3MM |
SFSP138X50A |
1200 |
500 |
1480 |
90-132 |
15-23 |
¢3MM |
SFSP138X60A |
1200 |
600 |
1480 |
110-160 |
18-30 |
¢3MM |
SFSP138X80A |
1200 |
800 |
1480 |
160-200 |
25-35 |
¢3MM |
SFSP138X100A |
1200 |
1000 |
1480 |
200-315 |
30-45 |
¢3MM |
Product Display
Company Introduction
Liyang Rongda Machinery Co.Ltd is a manufacturer specializing in the production of Biomass Machinery,Feed Machinery,Pellet Mill. Our company serves every customer with the standards of high efficiency, high quality and rapid response. With years of experience in production, we guarantee our product quality so you can purchase them with confidence. Feel free to contact us!
