Product details of the animal feed hammer mill
Quick Overview
Innovative technology and superior materials are adopted in Rongda animal feed hammer mill manufacturing. The skillful QC team guarantees the quality of this product. Rongda's animal feed hammer mill can be used in different fields. Liyang Rongda Machinery Co.Ltd's productive service team is able to provide better customer service.
Product Introduction
Rongda's animal feed hammer mill has the following advantages over other similar products.
Product Features
1. Adopts stainless steel automatic cleaning frequency-conversion impeller feeder which has small pulsation. This machine is of frequency control and equipped with strengthened magnet plate of over 3000GS which can clear the impurities in 10 seconds;
2. Grinding chamber adopts design of two-time hitting and grinding which can improve the capacity by over 15% and makes the grinding fineness more evenly;
3. Optimized combined wearable knives permutate alternately to make finished-goods fineness more evenly;
4. Vacuum melted knives and surface-hardened hammer pin extend the service life and further decrease the consumption of spare parts. By changing the position of knives on rotor can form two kinds of gap between knife and screen which respectively suitable for ordinary and fine grinding. When doing ordinary grinding, the grinding will be even and the productivity will be improved;
5. When the gap between knives and screen being less, the machine can be applied to fiber grinding or fine grinding;
6. Rotors which can be rotated positively and negatively and the bi-rolling feeding reduce the consumption of spare parts. The rotors have been dynamic balancing tested making the small vibration and long lifetime;
7. The two sides of hammer mill are equipped with quick-open maintenance door which is convenient for maintenance and changing screen and can be quickly locked.
Technical Parameter
Model |
Rotor Dia. (mm) |
Width of grinding chamber (mm) |
Speed of rotor (r/min) |
Power(kw) |
Capacity (t/h) |
Screen hole size (mm) |
SFSP120X40A |
1200 |
400 |
1480 |
55-90 |
8-20 |
¢3MM |
SFSP120X50A |
1200 |
500 |
1480 |
90-132 |
15-23 |
¢3MM |
SFSP120X60A |
1200 |
600 |
1480 |
110-160 |
18-30 |
¢3MM |
SFSP120X80A |
1200 |
800 |
1480 |
160-200 |
25-35 |
¢3MM |
SFSP138X40A |
1200 |
400 |
1480 |
55-90 |
8-20 |
¢3MM |
SFSP138X50A |
1200 |
500 |
1480 |
90-132 |
15-23 |
¢3MM |
SFSP138X60A |
1200 |
600 |
1480 |
110-160 |
18-30 |
¢3MM |
SFSP138X80A |
1200 |
800 |
1480 |
160-200 |
25-35 |
¢3MM |
SFSP138X100A |
1200 |
1000 |
1480 |
200-315 |
30-45 |
¢3MM |

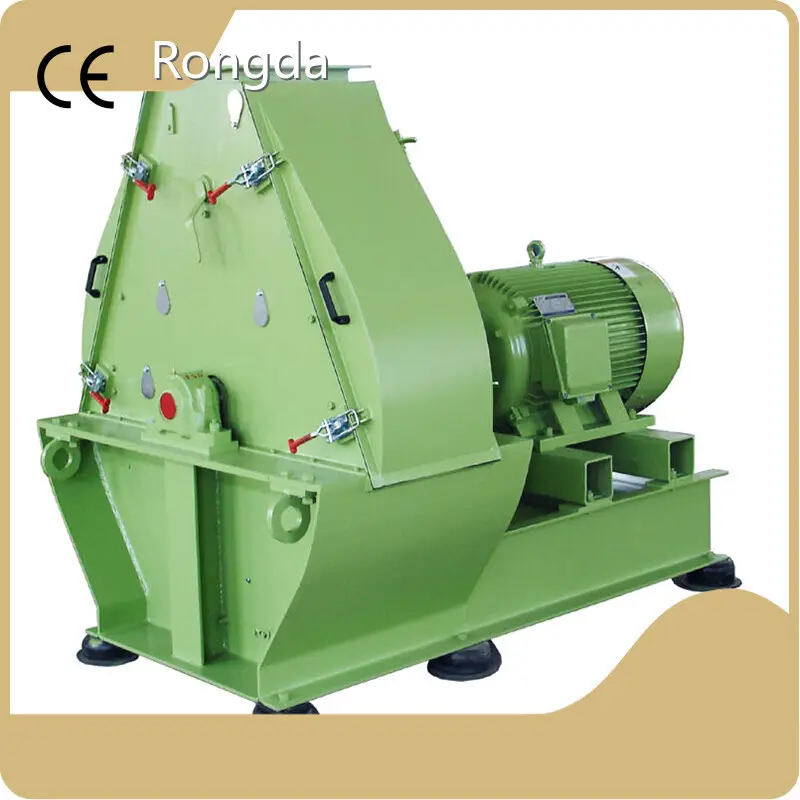

Product Display
Company Introduction
Liyang Rongda Machinery Co.Ltd has developed into a global leader in the field of animal feed hammer mill. Currently in the domestic market Liyang Rongda Machinery Co.Ltd has a higher share. We always conduct our business complying with the highest ethical and operational standards. We have set a goal - to treat our customers and suppliers with fairness, honesty, and respect.
Our products are all qualified and are sold directly from factory. Welcome friends from all walks of life to contact and consult us.
